Osram PLT5 480nm 60mw Laser Diode LD
Features
Optical output power (continuous wave): 60 mW (Tcase = 25C)
Typical emission wavelength: 488 nm
Efficient radiation source for cw and pulsed operation
Single transverse mode semiconductor laser
High modulation bandwidth
TO56 package with monitor and ESD protection diode
Applications
Biomedical Applications
Metrology
Safety Advice
Depending on the mode of operation, these devices emit highly concentrated visible light which can be
hazardous to the human eye. Products which incorporate these devices have to follow the safety
precautions found in IEC 60825-1 Safety of laser productsâ€Â.
Maximum Ratings
Operating Current:150 mA
Operating Temperature: -20-+60
Storage Temperature:-40-+85
Reverse Current: 20mA
Soldering Temperature max. 10 s
Laser Characteristics (Tcase = 25)
Emission Wavelength 1):486 ~490nm
Threshold Current: 40mA
Operating Current 1): 100mA
Operating Voltage 1): 7.5V

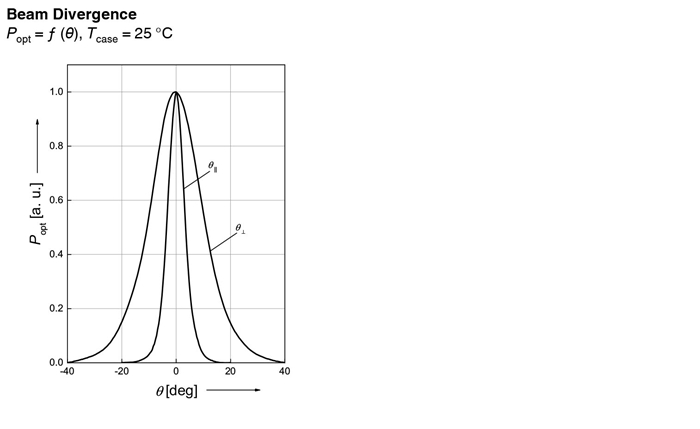

Beam Divergence (FWHM) 1): 4x16,8x26
