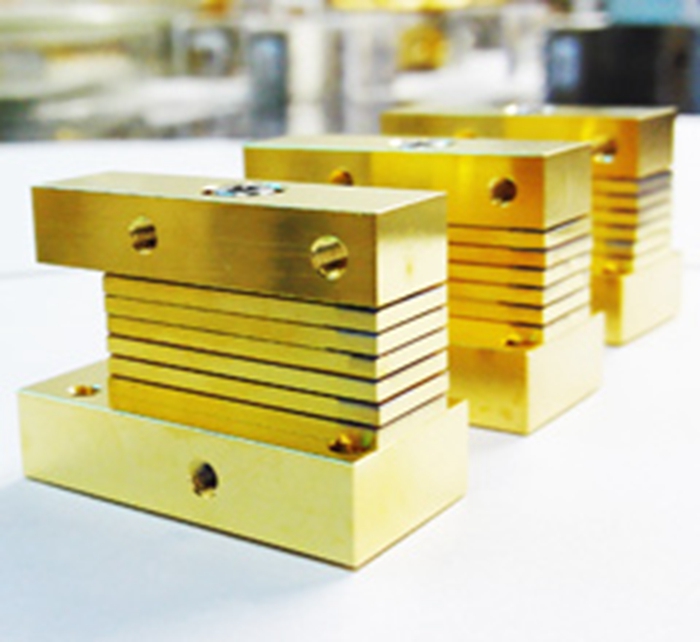

VS Series Micro Channel Vertical Stack MCC diode laser stack

High average power, single bar average power up to 100W
Working mode: CW or QCW
Service life: 10000hours
For pumping, cladding, material heating, scientific research and other applications
Installation size can be customized

The fabrication technology of the microchannel refrigeration film makes the cooling water channel of the upper and lower layers of the copper heat sink in the 1.5mm thick copper heat sink. The cooling water flows away the heat of the laser instantly and greatly prolongs the life of the laser. In the micro-channel water-cooled heat sink on the semiconductor laser chip package, so that the power output of single-chip laser can reach 100W per piece, a significant increase in the stack of laser power density.

Focus on the semiconductor laser diode packaging more than ten years, the micro-channel laminated laser product line is complete. Output power from 100W-2000W optional, complete range of wavelengths, in addition to conventional 810nm, 9XXnm, also introduced 755nm, 1064nm laser. Our strong technical team can be customized according to customer demand for a variety of installation size stacked array, supporting the supply of various types of industrial, scientific, medical and other applications. After more than 10 years of accumulated experience, we have successfully for the country and the world supporting the supply of a number of manufacturers of reliable quality, stable performance, cost-effective semiconductor lasers.

Product Model Number: VSCW-MI-N-60
Operation Mode: CW/QCW
Optical Output Power Per Bar: 60
Wavelength: 755, 808, 915, 940, 976,1060
Number of bars:N=1-20
Bar-to-Bar spacing:1.8
Fill facter: 50
Typical Operation current: 65
Maximum Operating current: 70
Typical Threshold current:12
Maximum Operating Voltage:<1.8*N
Fast Axis Divergence (Full Power):50

Product Model Number: VSCW-MI-N-100
Operation Mode: CW/QCW
Optical Output Power Per Bar: 100
Wavelength: 755, 808, 915, 940, 976,1060
Number of bars:N=1-20 Bar-to-Bar spacing:1.8
Fill facter: 50
Typical Operation current: 95
Maximum Operating current: 100
Typical Threshold current:15
Maximum Operating Voltage:<1.8*N
Fast Axis Divergence (Full Power):50

Product Model Number:VSQCW-MI-N-300

Operation Mode: QCW
Optical Output Power Per Bar: 300
Wavelength: 755, 808, 915, 940, 976,1060
Number of bars:N=1-20
Bar-to-Bar spacing:1.8
Fill facter: 75
Typical Operation current: 300
Maximum Operating current: 300
Typical Threshold current:25
Maximum Operating Voltage:<1.8*N
Fast Axis Divergence (Full Power):50

Cooling:

Flow rate: 0.3L/min+-10% per bar

Water Tempreture:15-30

Water Quality: Deionized 2-10 us/cm, mixed bed ion exchanger,particle filter<25um

Cooling system: Do not use any material that combination with copper would form galvantic elements
