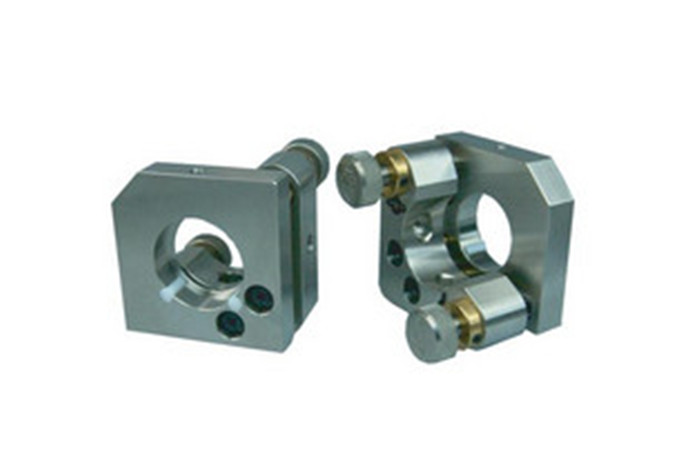

The is one of our best-selling kinematic mounts which features disc-spring with 2 strong springs design for superior stability. Featuring stainless steel material for vacuum application.
Details:
For Optics: Ø 1”, 1.5”, 2”
Optics Thickness:
SNO-1: 3~6 mm
SNO-1.5: 4~8 mm
SNO-2: 4~8 mm
Center Height:
SNO-1: 25.4 mm (1”)
SNO-1.5: 32 mm (1.26”)
SNO-2: 38.1 mm (1.5”)
Adjustable Axis: θx, θy
Travel Range: ± 4°
Weight:
SNO-1: 0.3 kg
SNO-1.5: 0.38 kg
SNO-2: 0.45 kg
Right / Left versions
Teflon tipped setscrew to fix lens
Unique Disc-Spring design
OP Mount Recommended Best Seller
Material : Stainless steel
Other choices:

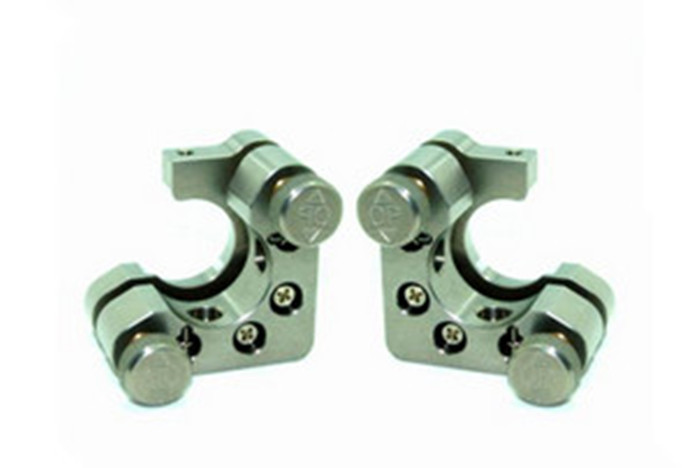

For Optics: Ø 1”, 1.5”, 2”
Optics Thickness:
SNC-1: 3~6 mm
SNC-1.5: 4~8 mm
SNC-2: 4~8 mm
Center Height:
SNC-1: 25.4 mm
SNC-1.5: 38.1 mm
SNC-2: 38.1 mm
Adjustable Axis: θx, θy
Tilt Range: ± 4°
Weight:
SNC-1: 0.11 kg
SNC-1.5: 0.17 kg
SNC-2: 0.20 kg
Right / Left versions
Teflon tipped setscrew to fix lens
Unique Disc-Spring design
Material : Stainless steel

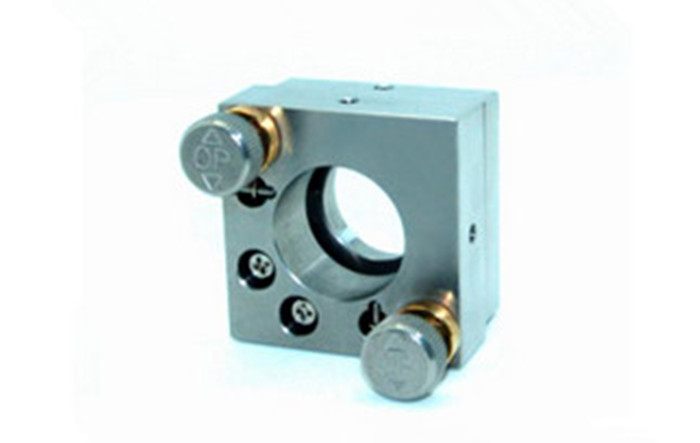

For Optics: Ø 1”, 1.5”
Optics Thickness: 3~6 mm (SN-1) / 4~8 mm (SN-2)
Center Height: 25.4 mm (SN-1) / 38.1 mm (SN-2)
Adjustable Axis: θx, θy
Travel Range: ± 4°
Weight: 0.13 kg (SN-1) / 0.22 kg (SN-2)
Teflon tipped setscrew to fix lens
Unique Disc-Spring design
Material : Stainless steel
For Optics: Ø 1”, 2”
Optics Thickness: Min 3 mm
Center Height:
SMN-1: 25.4 mm (1”)
SMN-2: 38.1 mm (1.5”)
Adjustable Axis: θx, θy
Weight:
SMN-1: 0.40 kg
SMN-2: 0.75 kg
Strong disc spring design
Teflon tipped setscrew to fix lens
Material : Stainless steel
