Sharp 487nm 55mw 5.6mm Laser Diode GH04850B2G
Sharp 487nm 55mw 5.6mm Laser Diode GH04850B2G

Price:   $99.00

Add to Cart:

Details: Sharp 487nm 55mw 5.6mm  Laser Diode GH04850B2G

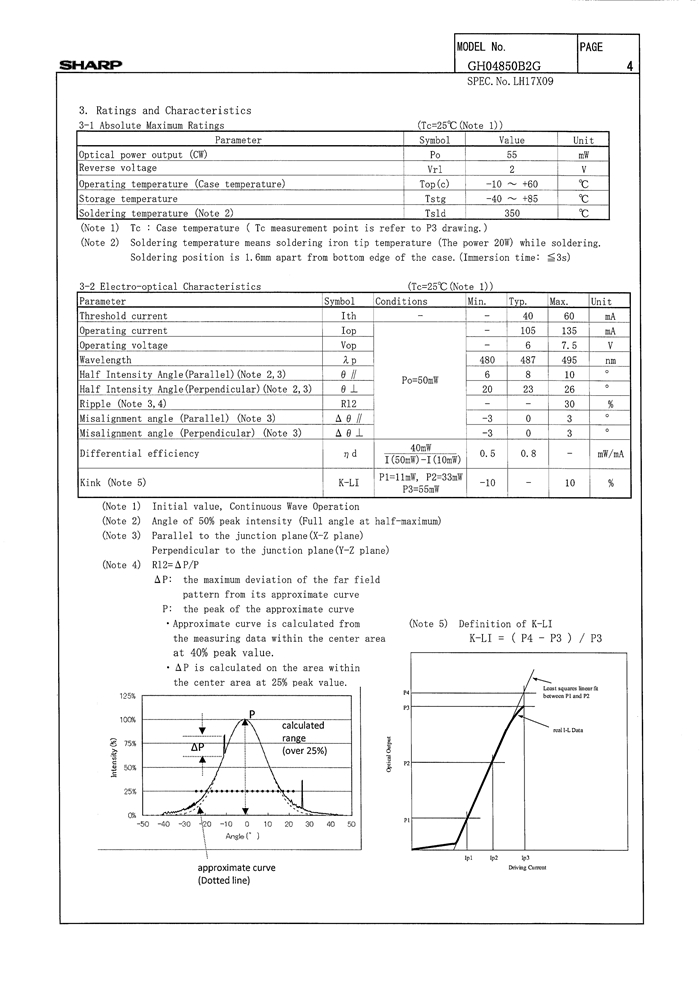

Absolute Maximum Ratings

Optical power output(CW): 55mW
Reverse voltage: 2V
Operating temperature (Case temperature): -10~+60°C
Storage temperature: -40~+85°C
Soldering temperature: 350 °C

Electro-optical Characteristics

Threshold current : 60mA
Operating current: 135mA
Operating voltage: 7.5V
Wavelength: 480 ~ 495nm
Half Intensity Angle( Parallel)(Note 2,3): 10
Half Intensity Angle( Perpendicular)(Note 2,3): 26
Ripple: 30%
Misalignment angle ( Parallel): -3~ 3
Misalignment angle ( Parallel): -3~ 3
Differential efficiency: 0.5mW/mA
Kink: -10~ 10%

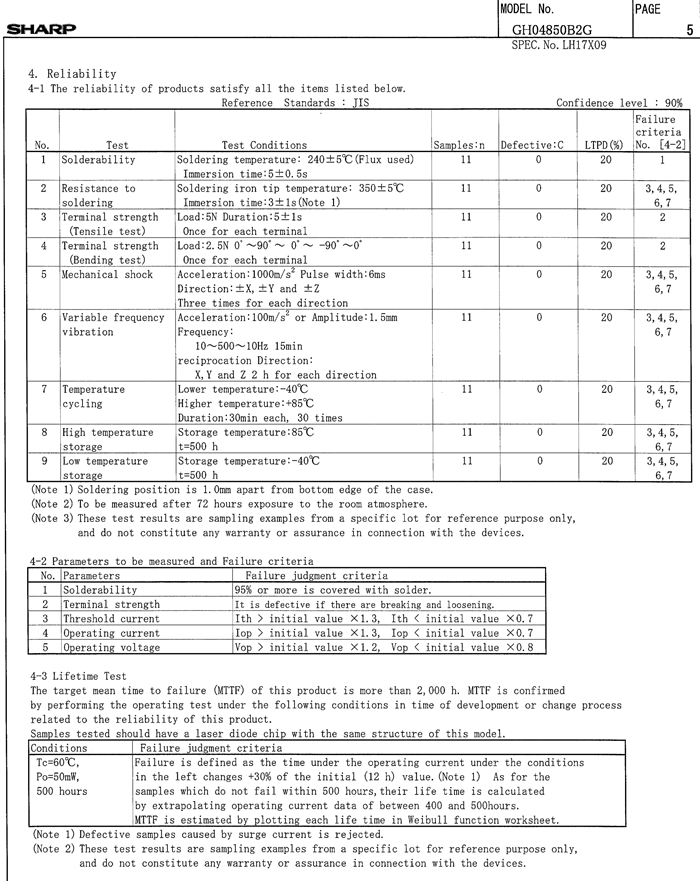

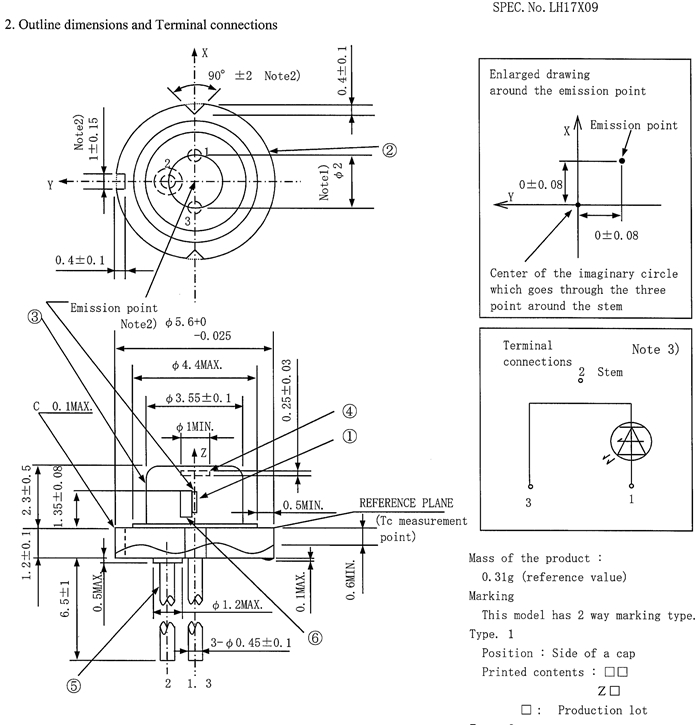

You can download the datasheet here:


Here is the 488nm Laser Diode.
