Nichia Violet 405nm-450nm Laser Diode NDV4632
Nichia Violet 405nm-450nm Laser Diode NDV4632

Price:   $159.00

Add to Cart:

Details:

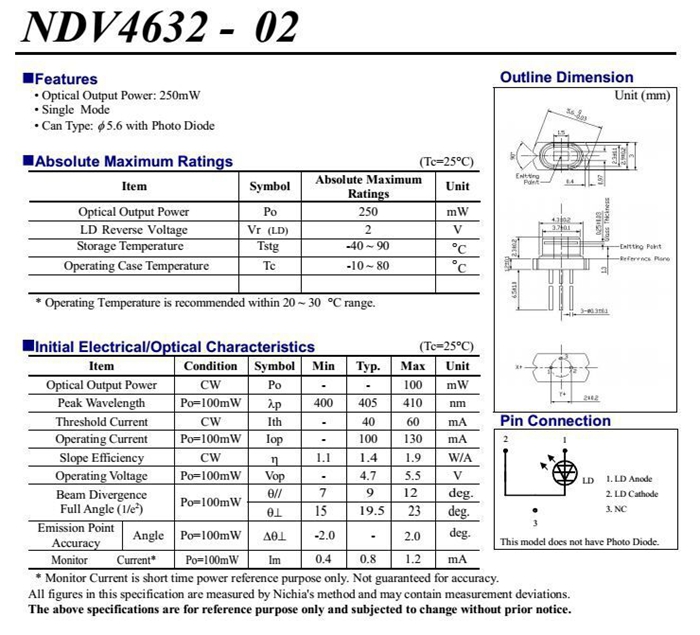

Nichia Violet 405nm-450nm Laser Diode NDV4632

Features:

Optical Output Power:  250mW ( @Tc=25℃)
Single Mode
Can Type: ⌀5.6 with Photo Diode .

Absolute Maximum Ratings:

Optical Output Power( @Tc=25℃ )*:  250  mW
LD Reverse Voltage:  2V
Storage Temperature:    -40~ 90℃
Operating Case Temperature:  -10~80 ℃

 Initial Electrical/Optical Characteristics  (Tc=25℃)

Optical Output Power:  100 mW
Peak Wavelength:    410 nm
Threshold Current:  60  mA
Operating Current:  130  mA
Slope Efliciency :  1.9  W/A
Operating Voltage : 5.5v




NDV4632 is the similar item with NDV4B16.
