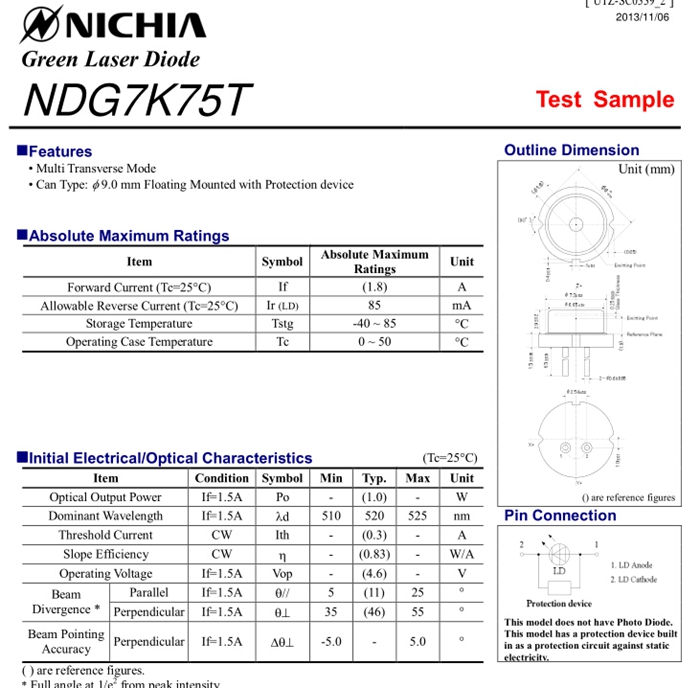

Features:
1. Visible light output : 520nm Typ
2. Optical output power : 1000mW CW
3. TO5 package: 9mm diameter
Absolute Maximum Ratings:
Forward Current:1.8A
Allowable Reverse Current:85mA
Storage Temperature:-40~85°C
Operating Case Temperature:0~50°C
Initial Electrical/Optical Characteristics:
Optical Output Power: Typ 1.0
Dominant Wavelength: Min 510 Typ 520 Max 525
Threshold Current:Typ 0.3
Slope Efficiency: Typ 0.83
Operating Voltage: Typ 4.6
Beam Divergence Parallel: Min 5 Typ 11 Max 25
Beam Divergence Perpendicular: Min 35 Typ 46 Max 55
Beam pointing Accuracy Perpendicular: Min -5.0 Max 5.0
Description:
1. Multi Transverse Mode laser diode.
2. Can Type: φ 9.0 mm Floating Mounted with Protection device.
3. Salable Nichia high quality 520nm 1w laser diode NDG7475T.
