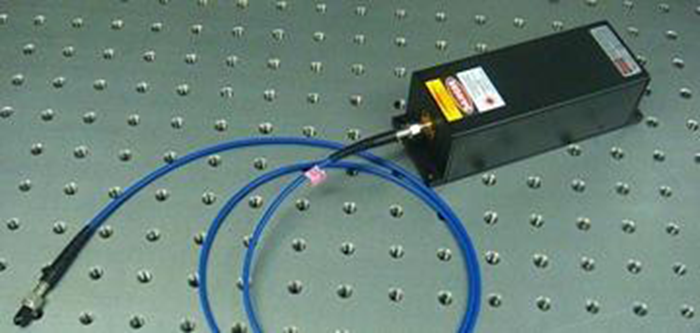

Multimode 792nm Fiber Coupled Laser 200 um Core Diameter Fiber
Multimode 792nm Fiber Coupled Laser 200 um Core Diameter Fiber

Price:   $1,980.00

Add to Cart:

High quality infrared laser system at 793nm. It can be customized to low noise and fiber coupled. It's 200mW output power, contact us if you need other customized output power.

Adjustable Power, easy to operate;
Use of imported top quality laser diodes, reliable performance and longest life time;
Power supply comes with thermal, overcurrent protection circuit, can be an external high-speed modulation;
High quality multi-mode fiber coupling output fiber removable, easy to maintain;
Applications: Spectroscopy, materials analysis, bio-engineering, photoelectric detection, medical and so on.,

Wavelength(nm): 792±4
Output power(mW): 200mW ( Adjustable output power 0-200mW)
Transverse mode: Near TE00
Operating mode: CW
Fiber core diameter: 200um
Numerical aperture: 0.22
Length of Fiber: 100cm
fiber connector:SMA905
Power stability (rms, over 4 hours): <1% or 3%
Cooling System:TEC
Operating temperature(℃): 0~40
Power supply:90~240VAC@50Hz
Expected lifetime(hours): 10000
Warranty: 1 year

Laser Head Dimensions (L×W×H, mm):102 x 35 x 35
Laser Head Net Weight (kg):0.3

Power Driver Dimensions (L×W×H, mm):150 x 110 x 56
Power Driver Net Weight (kg): 0.6

Refer to more 792nm laser from other suppliers as following:

200W 792nm Laser:

792nm Laser Diode from QPC Laser Operations is a 200 Watt high power laser array. This device is offered in a fiber coupled module. Key features and benefits described in the attached data sheet include low laser diode power consumption and compact form factor. Long lifetime is also referenced on the attached data sheet.
