Features:
Shorter wavelength:638nm
High optical output power:700mW

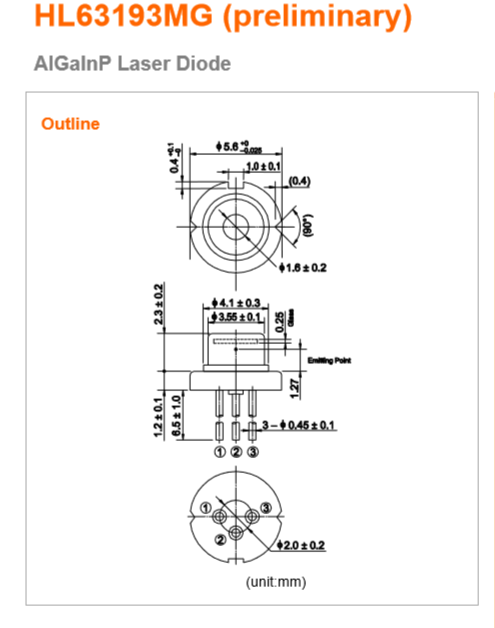

Small package:5.6mm
Multi transverse mode
TM mode oscillation
Aplication:
Laser projector
Show Laser
Light source of optical equipment

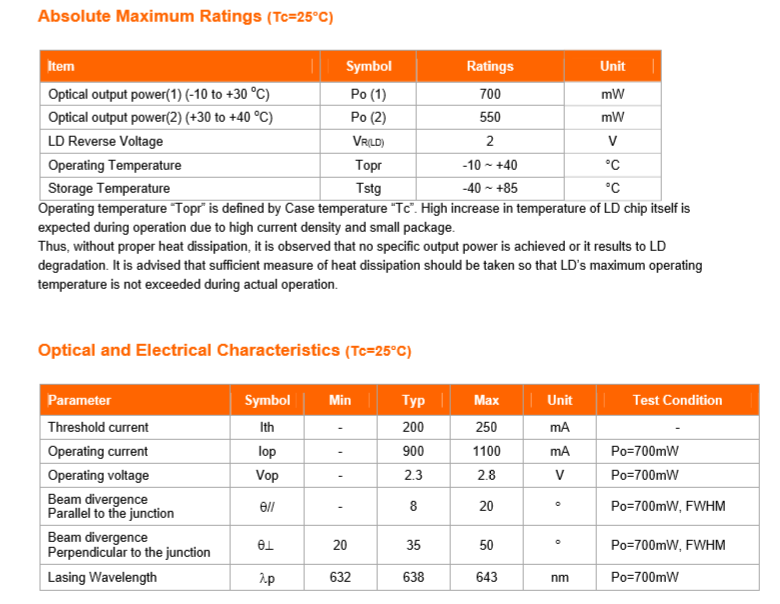

Absolute Maximum Ratings:
Optical output power(-10 to +30°C):700mW
Optical output power(+30 to +40°C):550mW
LD Reverse Voltage:2V
Operating Temperature:-10~ +40°C
Storage Temperature: -40~ +85°C
Optical and Electrical Characteristcs:
Threshold current: Typ 200 Max 250 Unit mA
Operating current: Typ 900 Max 1100 Unit mA Test Condition Po=700mW
Operating voltage: Typ 2.3 Max 2.8 Unit V Test Condition Po=70mW
Beam divergence Parallel to the junction: Typ 8 Max 20 Test Condition Po=70mW,FWHM
Beam divergence Perpendicular to the junction: Min 20 Typ 35 Max 50 Test Condition Po=70mW,FWHM
Lasing Wavelength: Min 632 Typ 638 Max 643 Condition Po=70mW
