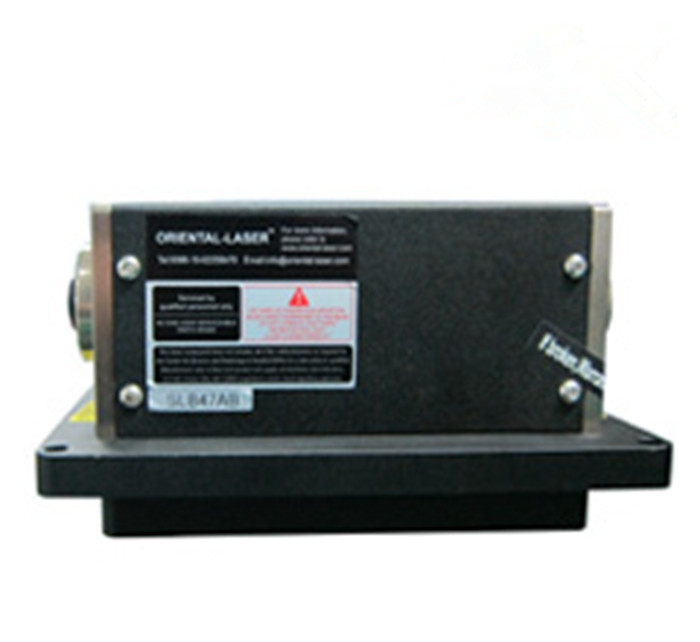

GN series 35-1KW Continuous Side 1064nm Pump Module Laser
Output wavelength 1064nm
Power 35W-1000W
Stable performance, life> 10000 hours
Model: GN35 Output power (W): 35 Nd: YAG (mm): Φ2 Working current (A): 18 Working voltage (V): <18
Model: GN50-H Output power (W):50 Nd: YAG (mm):Φ2,Φ3 Working current (A): 20 Working voltage (V): <18
Model:GN50-E Output power (W): 50 Nd: YAG (mm): Φ2,Φ3 Working current (A):25 Working voltage (V):<24
Model:GN75-H Output power (W):75 Nd: YAG (mm): Φ2, Φ3 Working current (A): 20 Working voltage (V): <24
Model:GN75-E Output power (W):75 Nd: YAG (mm):Φ3 Working current (A):25 Working voltage (V): <30
Model:GN100 Output power (W):100 Nd: YAG (mm):Φ3, Φ4 Working current (A):25 Working voltage (V):<40
Model:GN150 Output power (W):120 Nd: YAG (mm):Φ4 Working current (A):25 Working voltage (V):<50
Model:GN200 Output power (W):150 Nd: YAG (mm):Φ4,Φ5 Working current (A):25 Working voltage (V):<70
Model:GN300 Output power (W):300 Nd: YAG (mm):Φ5 Working current (A): 25 Working voltage (V):<70
Model:GN400 Output power (W):400 Nd: YAG (mm):Φ5,Φ6,Φ6.35 Working current (A): 25 Working voltage (V):<80
Model:GN500 Output power (W):500 Nd: YAG (mm):Φ7, Φ8 Working current (A):25 Working voltage (V):<100
Model:GN1000 Output power (W):1000 Nd: YAG (mm):Φ7, Φ8 Working current (A):25 Working voltage (V):<200
Note: GN series module typical Nd: YAG doping concentration of 0.6%, other concentrations optional 0.6% -1.1%; threshold current of about 10A; output spot mode for the low-order multi-mode; factory power test for the 300mm cavity length test , The average tone to the optimal use of peace; life expectancy of 10,000 hours, 13 months between the warranty.
Sheet metal cutting.
Metal and some non-metallic marking.
Metal and plastic welding, laser cleaning.
PCB, ceramic and solar dicing and cutting.
