Features:
Maximum optical power output:210mW(CW)
High power (pulse MAX.420mW),MAX.
High coupling efficiency.
The ellipticity is close to 1.
Wavelength：TYP.830nm
Applications:
Various types of sensors,etc.

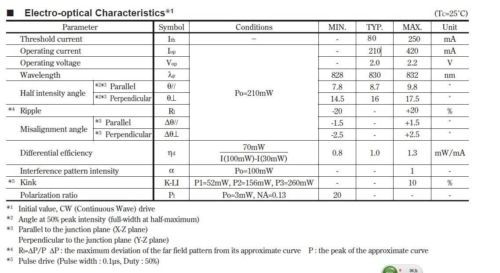

Electro-optical Characteristics:
Threshold current: Typ 80 Max 250
Operatring current: Typ 210 Max 420
Operating voltage: Typ 2.0 Max 2.2
Wavelength:Min 828 Typ 830 Max 832
Half intenity angle Parallel: Min 7.8 Typ 8.7 Max 9.8
Half intenity angle Perpendicular: Min 14.5 Typ 16 Max 17.5
Ropple: Min -20 Max +20
Misalignment Parallel: Min -1.5 Max +1.5
Misalignment Perpendicular: Min -2.5 Max +2.5
Different efficiency: Min 0.8 Typ 1.0 Max 1.3
Interference pottern intensity: Max 1
Kink: Max 10
Polarization ratio: Min 20

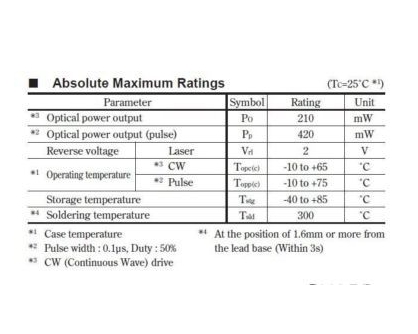

Absolute Maximum Rating:
Optical power output: 210mW
Optical power output(pulse): 420mW
Reverse voltage
Operating temperature Laser CW: -10 to +75 °C
Operating temperature Laser Pulse: -10 to +75 °C
Storage temperature: -40 to +85 °C
Soldering temperature:300 °C
