The lens holder is convenient, inexpensive alternatives to our full-featured opto-mechanical mounts. Ideal for post-mounted and OEM level applications where adjustment is not required after initial position. Optics can be expected to be securely mounted via it's unique Retaining Ring design.
There are three types for you to choose:

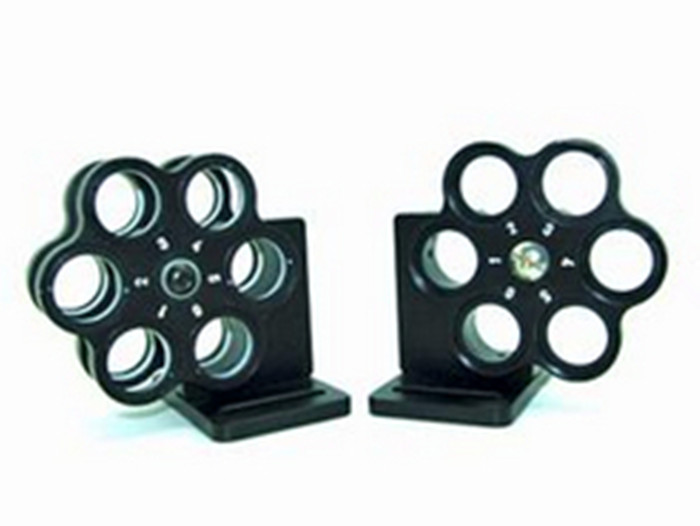

Filter Wheels Holder:
Filter Diameter: Ø 1”
Effective Diameter: 23 mm (0.9”)
Thickness: 0~5 (0.2“)
Weight: 0.22 kg (FW1-6) / 0.28 kg (FW1-12)
Each wheel consists of six 1"-diameter filter
FW1-6 with single-wheel and FW1-12 with dual
Post or plate mountable
Material: Aluminum

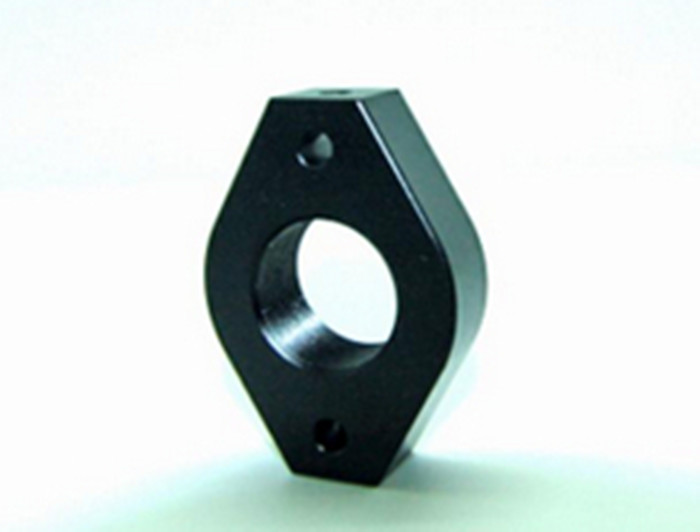

Objective Fixed Holder:
For standard objectives
M20x0.3p thread
Tilt Range: ±4°
Width: 36.0 mm (1.42”)
Height: 50.8 mm (2”)
Thickness: 12.7 mm (0.50”)
Material: Aluminum (Black anodized)

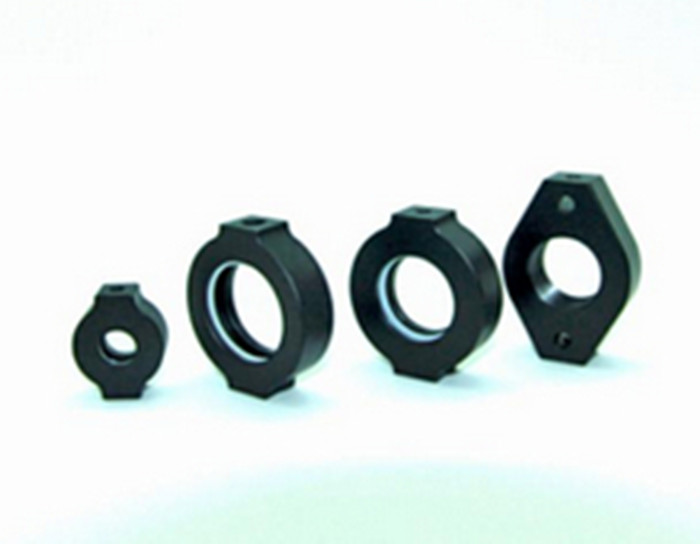

Lens Holder:
For optic: Ø 0.5", 1", 1.2", 1.5", 2", 3, 4”
For lenses from 6.0 to 76.2 mm (0.25 ~ 3") in diameter
Weight: 0.01~0.12 kg
Economical and convenient lens mounting
Teflon ring with threaded cap ring to fit various of thickness
Comes in a various of sizes
Material : Aluminum
