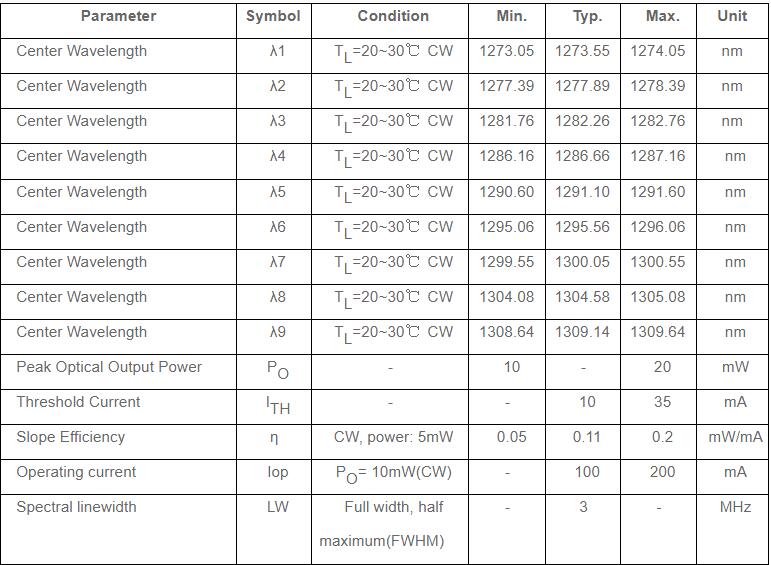

The 10mW 20mW LAN WDM DFB Laser Diodes consists of four wavelengths: 1273.55nm, 1277.89nm, 1282.26nm, 1286.66nm, 1291.10nm, 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm. Wavelength is temperature stabilized.

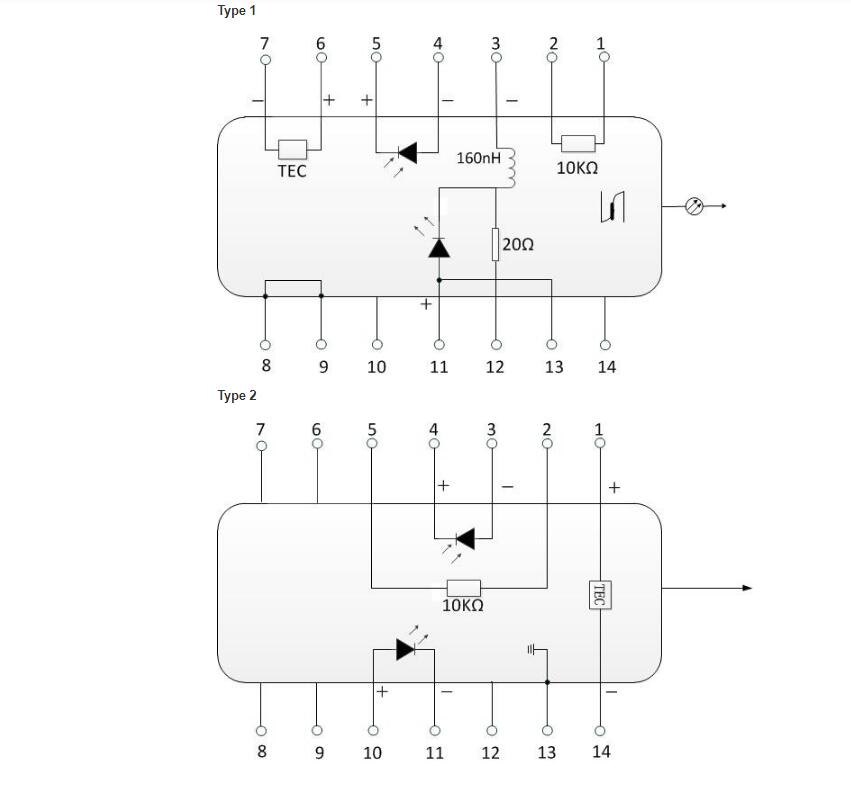

The LAN-WDM Laser diodes in a hermetic sealed 14-pin butterfly package, which contain TEC, thermistor, monitor PD and optical isolator. We also have full customer selection of output powers, package types and SM fibers, PM fibers and other special fibers. This module complies described in Telcordia GR-468-CORE requirement and in compliance with RoHS directives.
10~20mW High output power;
High-performance, multiquantum well (MQW) distributed-feedback (DFB) laser;
Industry-standard 14PIN butterfly package;
Built-in TEC and optical isolator;
Customer selection of wavelengths.
Reliability: Telcordia GR-468. RoHS
LAN, WAN and metro networks;
C/DWDM systems;
Fiber optic sensors;
Laser sources;
CATV systems.
