Customized 1-200KW QCW DPSS Laser Module
Customized 1-200KW QCW DPSS Laser Module

Price:   $890.00

Add to Cart:

Details:

These 1-200KW QCW DPSS Laser Module can be customized according to your requirements, such as output powers and other specs. The output powers are from 1KW to 200KW. Customized 1-200KW QCW DPSS Laser Module .

A CW or Continuous Wave laser emits lights continuously, rather than in pulses. A QCW or Quasi Continuous Wave laser emits light in long pulses while a pulsed laser emits lights in nanosecond length pulses. Shortening the pulse reduces the thermal effects enabling higher powers. QCW quasi continuous wave (QCW) fiber lasers are ideal for spot welding, seam welding & drilling.

Single pulse energy up to 10J
Duty cycle <15%
Water cooling or air cooling optional

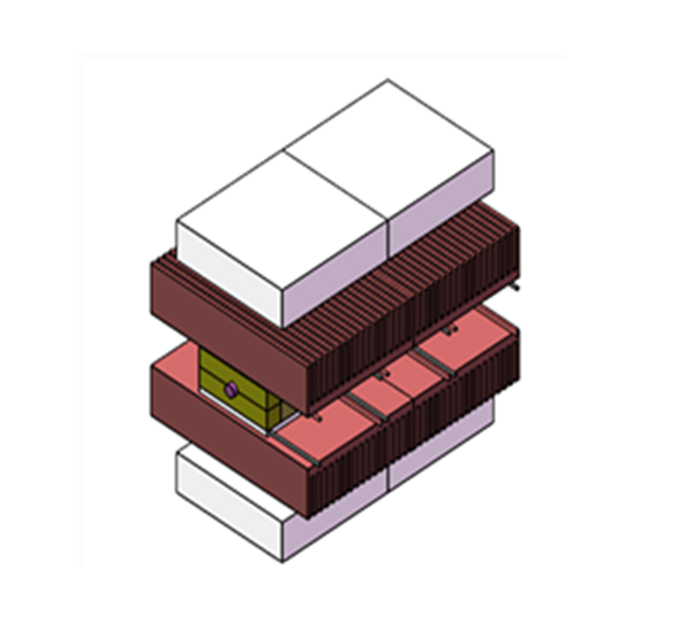

Arc, vertical, horizontal array can be customized
A variety of wavelengths of 792nm, 808nm, 915nm, 966nm, 976nm and other optional

GN series:

Model: GN35 Output power (W): 35 Nd: YAG (mm): Φ2 Working current (A): 18 Working voltage (V): <18

Model: GN50-H Output power (W): 50 Nd: YAG (mm): Φ2, Φ3 Working current (A): 20 Working voltage (V): <18

Model: GN50-E Output power (W): 50 Nd: YAG (mm): Φ2, Φ3 Working current (A): 25 Working voltage (V): <18

Model: GN75-H Output power (W): 75 Nd: YAG (mm): Φ2, Φ3 Operating current (A): 20 Operating voltage (V): <24

Model: GN75-E Output power (W): 75 Nd: YAG (mm): Φ3 Operating current (A): 25 Operating voltage (V): <24

Model: GN100 Output power (W): 100 Nd: YAG (mm): Φ3, ​​Φ4 Working current (A): 25 Working voltage (V): <30

Model: GN150 Output power (W): 120 Nd: YAG (mm): Φ4 Operating current (A): 25 Operating voltage (V): <40

Model: GN200 Output power (W): 150 Nd: YAG (mm): Φ4, Φ5 Operating current (A): 25 Operating voltage (V): <50

Model: GN300 Output power (W): 300 Nd: YAG (mm): Φ5 Operating current (A): 25 Operating voltage (V): <70

Φ5, Φ6, Φ6.35 Working current (A): 25 Working voltage (V): <80 The output power of (W): 400N: YAG (mm)

Model: GN500 Output power (W): 500 Nd: YAG (mm): Φ7, Φ8 Working current (A): 25 Working voltage (V): <100

Model: GN1000 Output power (W): 1000 Nd: YAG (mm): Φ7, Φ8 Working current (A): 25 Working voltage (V): <200

Note: The Nd: YAG doping concentration of 0.6 ~ 1.1% optional; single pulse energy definition conditions for the 200μs / 100Hz case 1064nm pulse energy; conventional module design duty cycle ≤ 5%, high duty cycle module needs customization; The signal gain may vary according to the Nd: YAG concentration, length and diameter; water-cooled and conductive refrigeration structures can be customized.

MQ series:

Model: MQ1 Nd: YAG Diameter: 5-10mm Single pulse energy:> 1J Operating voltage: 250V Peak current: 200A

Model: MQ2 Nd: YAG Diameter: 5-10mm Single pulse energy:> 2J Working voltage: 500V Peak current: 200A

Model: MQ3 Nd: YAG Diameter: 5-10mm Single pulse energy:> 3J Working voltage: 750V Peak current: 200A

Model: MQ5 Nd: YAG Diameter: 5-10mm Single pulse energy:> 5J Operating voltage: 1250V Peak current: 200A

Model: MQ10 Nd: YAG Diameter: 5-10mm Single pulse energy:> 10J Working voltage: 2500V Peak current: 200A

Note: MQ series drive power is generally driven by multiple power supply synchronization, where the working voltage refers to the sum of the internal chip voltage drop; single pulse energy defined conditions for 200μs / 200Hz case 1064nm pulse energy; MQ series general design duty Than ≤ 2%; MQ series for customized products.
Applications:

  1. Industrial materials processing;
  2. As a laser oscillation generator and seed light source;
  3. As a laser amplifier;
  4. High-peak power pulses are obtained by passive Q-switching or electro-optic Q-switching;
  5. Other scientific research and medical use;
  6. High-precision remote ranging;
  7. High-energy pulse military use.
