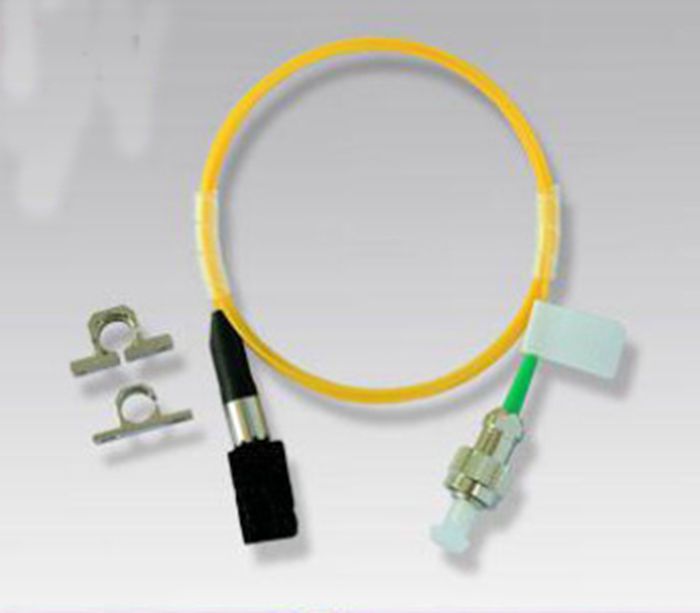

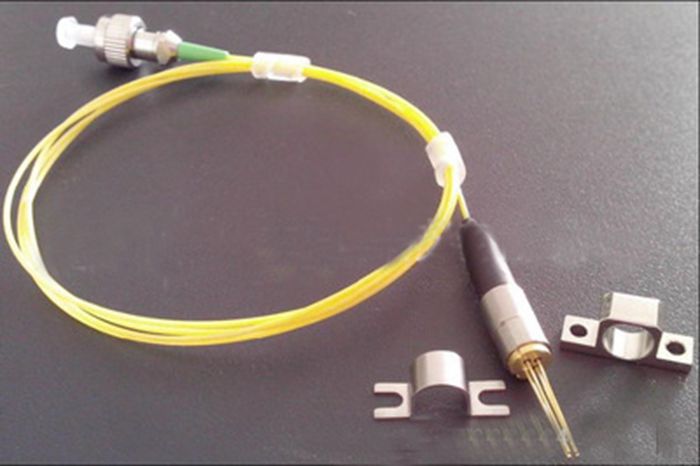

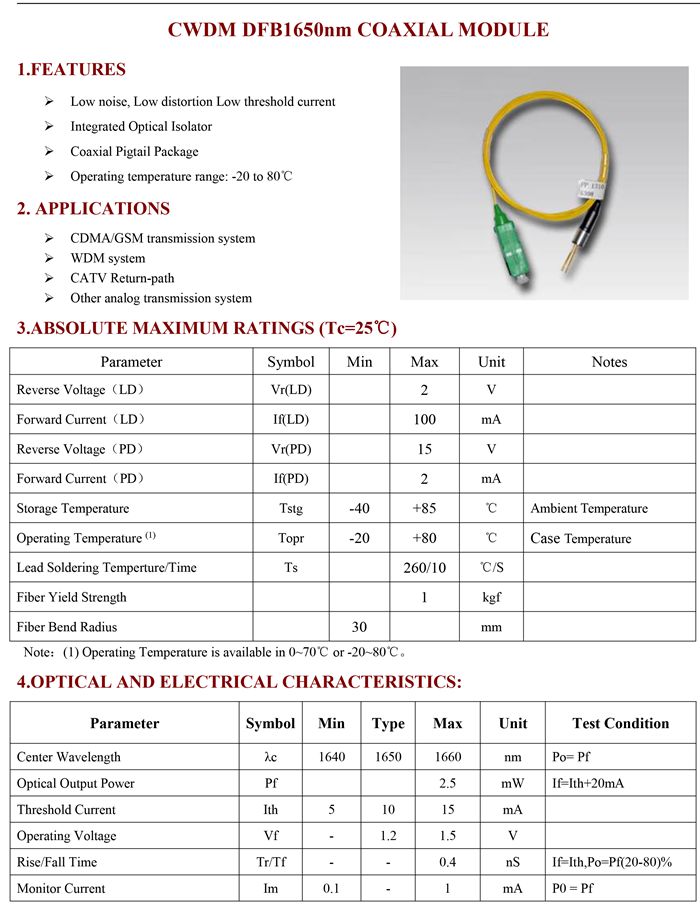

COAXIAL CWDM DFB 1650nm MODULE
1.FEATURES
Low noise, Low distortion Low threshold current
Integrated Optical Isolator
Coaxial Pigtail Package
Operating temperature range: -20 to 80℃.
2.APPLICATIONS
CDMA/GSM transmission system
WDM system
CATV Return-path
Other analog transmission system
3.ABSOLUTE MAXIMUM RATINGS( TC=25℃)
Reverse Voltage(LD) : 2V
Forward Current （LD): 100mA
Reverse Voltage (PD): 15V
Forward Current （PD): 2mA
Storage Temperature: -40~ 85℃
Lead Soldering Temperature/Time: 260/10℃/S
Fiber Yield Strength: 1 kgf
Fiber Bend Radius: 30mm
