Features：
10W output power
915nm,940nm,965,976nm
wavelength
105µm fiber core diameter
0.15/0.22N.A.
1030nm-1200nm feedback protection
Applications：
Laser Pumping
Medical Use
Material Processing
Parameter:
CW Output Power: 11W
Threshold current: 1A
Operating current: 12A ~ 14A
Operating voltage: 2 V
Reverse Voltage: 2.5V
Slope Efficiency: 1 W/A
Electrical-to-Optical Efficiency: 48 %
Center wavelength: 905 ~ 925 nm
Spectral width(FWHM): 6 nm
Back reflection wavelength Range: 1040nm ~ 1200nm
Back reflection isolation: 30dB
Wavelength Shift with Temperature: 0.3 nm/℃
Light within 0.15NA: 95
Life Time: 100000 hrs
Fiber Date:
Buffer diameter: 250μm
Cladding diameter: 125μm
Core diameter: 105μm
Numeric aperture: 0.22
Fiber length : 1m
Fiber Bend Radius: 37.5mm
Others:
ESD: 500V
Storage temperature: -20 ~70 ℃
Lead Soldering Temp: 260℃
Lead Soldering Time: 10 sec
Operating case temperature: 15 ~ 35 ℃
Relative Humidity: 15 ~ 75 %

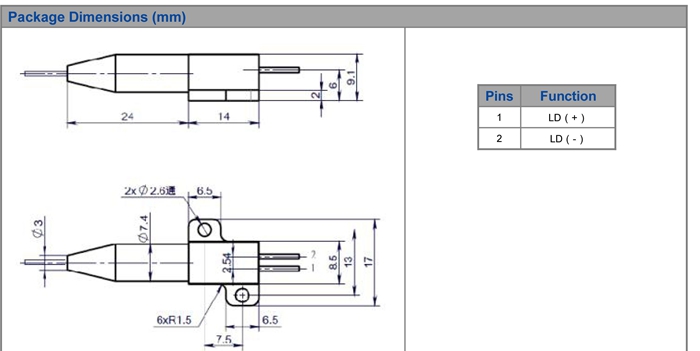

OPERATING NOTES
- Avoid eye exposure to direct or scattered radiation.
- ESD precautions must be taken.
- Please connect pins to wires by solder instead of using socket when operation current is higher than 6A.
- Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
- Use constant current power supply. Avoid surge current. Laser diode must be used according to the specifications. Laser diode must work with good cooling.
- A minimum bend radius should be 300 times greater than the fiber cladding diameter, dynamic bend radius should be 400 times greater than the
- fiber cladding diameter.
- Operation temperature is 15℃~ 35℃.
- Storage: -20℃~ +70℃, all pins short-circuit
