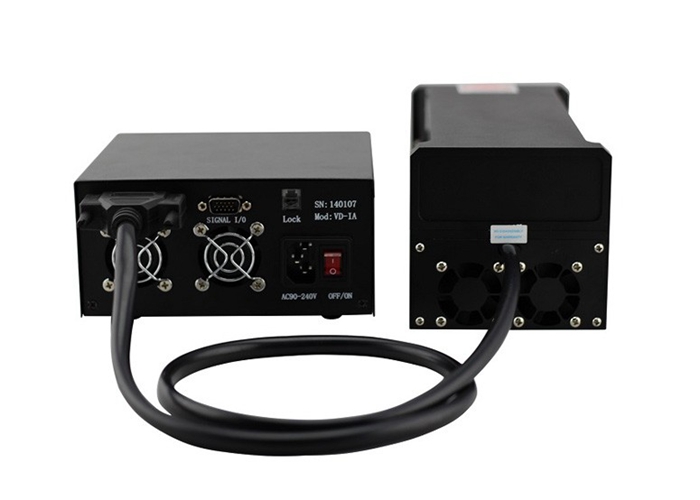

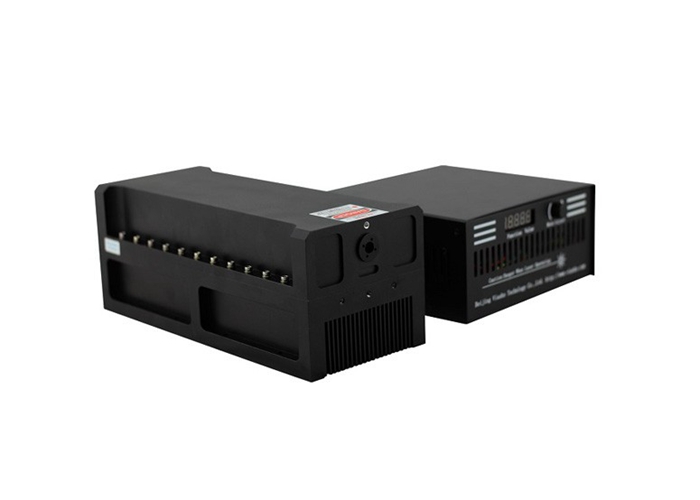

915nm 10000~50000mW DPSS Diode Laser
915nm 10000~50000mW DPSS Diode Laser

Price:   $11,999.00

Add to Cart:

Details: 915nm 10000~50000mW DPSS Diode Laser

Application:

Power stable, adjustable
Power comes with overheating, current limiting protection circuit
Can be external high-speed modulation
For scientific research, medical treatment, biological testing, material handling and so on

Wavelength (nm) : 915
Output Power (mW) : 10000~50000
Working Mode : CW
Beam Mode : Quasi TE00
Spectral Linewidth (nm) : <3.0
Polarization : Line polarization
Polarization Ratio : >50:1
Beam Quality (M2 factor) : <20
Beam Divergence (full angle, mrad) : Square, ~6.0×6.0
Beam Diameter at Aperture (mm) : 5.0×7.0
Power Stability (RMS, over 8 hours) : <5%
Aperture Position (mm) : 84
Laser Head : Dimensions (L×W×H, mm): 260 x 112 x 105
                     Net Weight (kg): 4.5

Integrated Driver Model : VD-III Series
External Modulation : 5V TTL / 5V Analogue
Modulating Repetition : 30KHz TTL / 10KHz Analogue
Cooling System : TEC
Warm-up Time (minutes) : <15
Operation Temperature (℃) : 18~30
Expected Lifetime (hours) : >10000
Warranty Time : 1 year
