High brightness, high quality, and high reliability are the foundation of our multi mode product line.785nm multi mode laser diodes are available with up to 2W of continuous output power from a single emitter chip. Our 785nm multi mode line serves a broad range of applications including Raman Spectroscopy, laser pumping, and medical laser therapy.
Packaging options include industry standard 9mm TO-can, C-mount, B-mount, and QA-mount. More product options are available upon request.
785nm Multi-Mode Laser Diodes
100μm emitter (1W-2W)
Features:
Up to 2W CW output power. High Quality, Reliability & Performance.
Applications:
Raman Spectroscopy
Laser Pumping
Laser Therapy

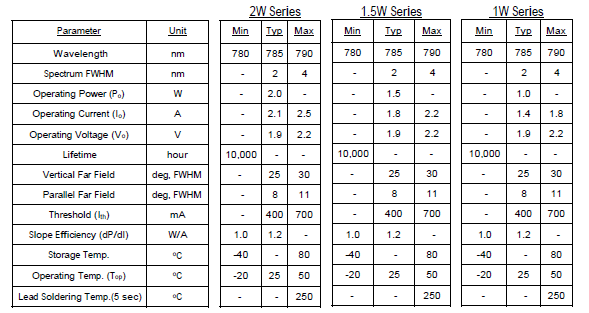

Standard Product Specifications for 785nm Multi-mode Diodes
Note: 1) Specifications are subject to change without notice.
2) All products are TE polarized
3) Lamda-Lok model has a spectral shift due to temp of 0.005-0.01 nm/°C and a spectral shift due to current of 0.1
