780nm 5mw TO18 Red Laser Diode
780nm 5mw TO18 Red Laser Diode

Price:   $19.99

Add to Cart:

Details: 780nm 5mw TO18 Red Laser Diode

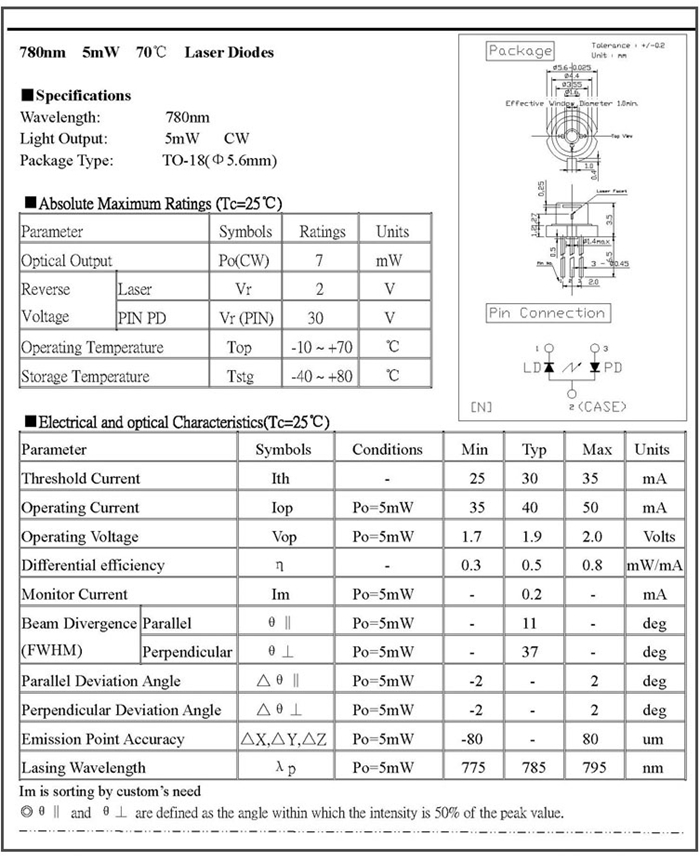

Spec.
Wavelength: 780nm
Light Output: 5mw CW

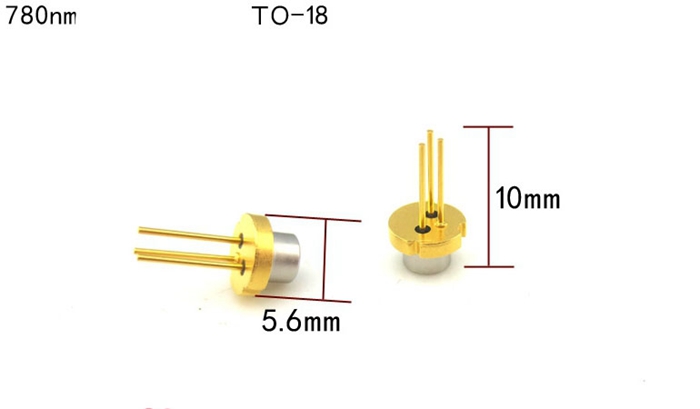

Package Type: TO-18 ( ⌀ 5.6mm )

Absolute Maximum Ratings ( Tc= 25 ℃ )
Optical Output: 7 mW
Reverse Voltage : Laser 2 V
                          PIN PD 30V
Operating Temperature: -10 ~ +70  ℃
Storage Temperature: -40 ~ +80  ℃

Electrical and optical characteristics ( Tc= 25 ℃ )
Threshold current: 25 ~ 35 mA
Operating current : 35 ~ 50 mA
Operating Voltage : 1.7 ~ 2.0 Volts
Differential efficiency: 0.3 ~ 0.8mW/mA
Monitor current: 0.2 mA
Beam Divergence : Parallel 11 deg
                           Perpendicular 37 deg
Parallel Deviation Angle : -2 ~ 2 deg
Emission Point Accuracy: -80  ~ 80um
Lasing Wavelength: 775 ~ 795nm
