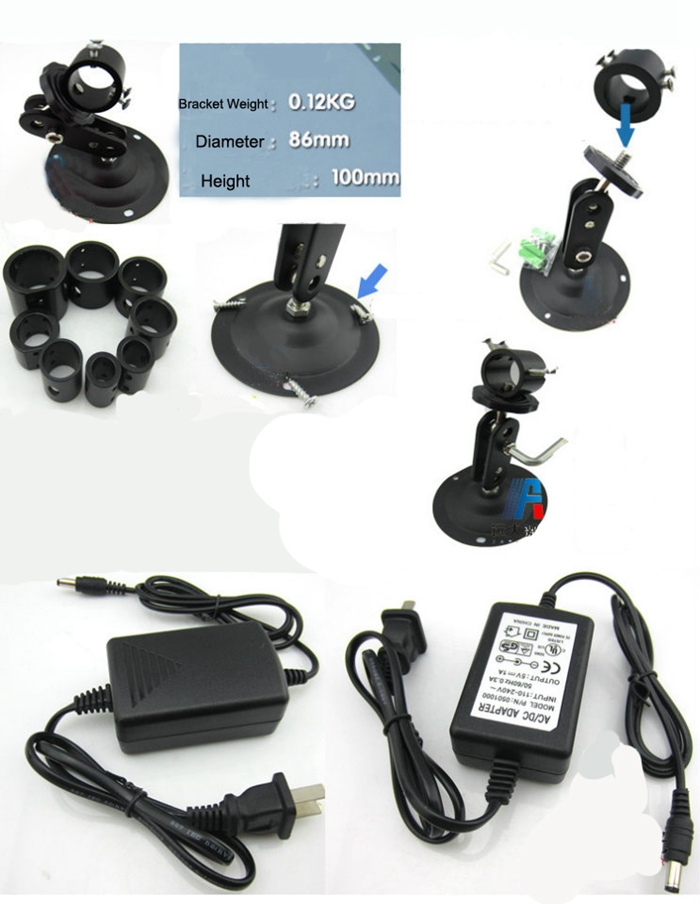

660nm Laser Module Crosshair with Bracket

Adjust the design of the knob to facilitate the adjustment of the focal length of the customer at different distances;

◆ Use 10° high-quality glass lenses to make the lines clear and slim;

◆ Drive circuit uses intelligent IC program control, better stability;

◆ Black oxide shell, life-long anti-static;

The temperature that the laser diode can withstand is raised to 50 °C;

◆ laser head and tail point AB glue, shock and drop resistance;

◆ The tail power cord adopts high temperature wire, good toughness and high temperature resistance

Power: 5mw

Operating voltage: DC2.8-5V

Operating current: ≤40mA

Size: ¢12*36mm

Spot Mode: Crosshairs  ( a crosshair that is about 3cm in size from 20 inches away )

Optical Lenses: Optical Glass Lenses

Output band: red laser

Operation mode: continuous laser

Incentive method: electric excitation laser

Working medium: semiconductor laser

Drive Original: APC Circuit

Product use: industrial positioning
