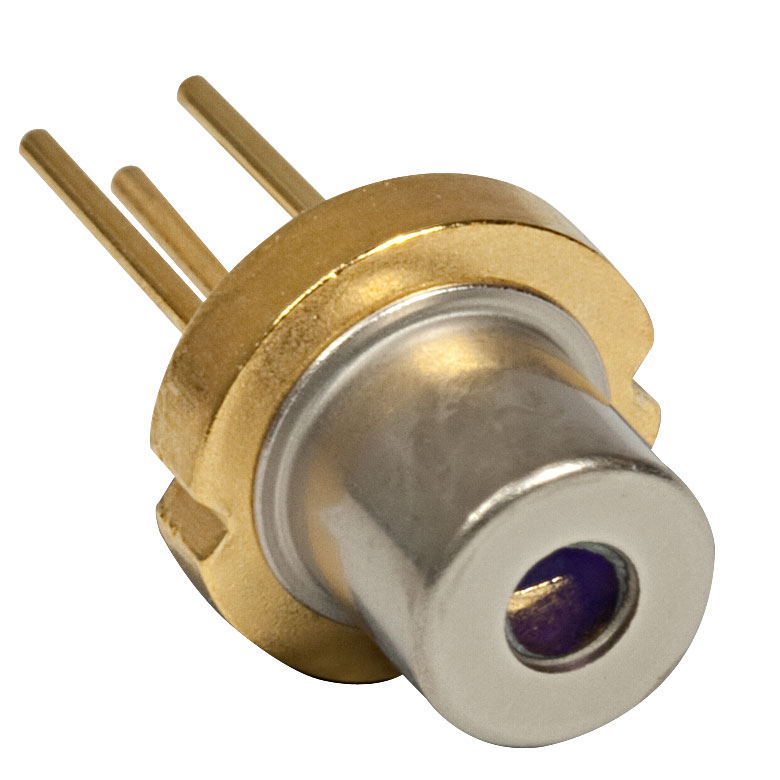

660nm 200mW Laser diode high power semiconductor laser tube ML101J29-G
660nm 200mW Laser diode high power semiconductor laser tube ML101J29-G

Price:   $29.00

Add to Cart:

Details: 660nm 658nm 200mW Laser diode high power semiconductor laser tube ML101J29-G, ML101J29.

ML101J29-G is a high power,high efficient AlGaInP semiconductor laser which provides a stable, single transverse mode oscillation with emission wavelength of 658nm and standard pulse light output of 350mW.

ml101j29-g has a real-index-waveguide which improves the slope efficiency (reduction of the operating current) and the astigmatic distance.

Also, ml101j29-g has a window-mirror-facet which improves the maximum output power. That leads to highly reliable and high-power operation.

Features:
High Output Power: 350mW (Pulse)
High Efficiency: 0.95 W/A (typ.)
Visible Light: 658nm (typ.)


Applications:

FOR OPTICAL INFORMATION SYSTEMS
Portable High-Density Optical Disc Drives
Re-Writable DVD Drives

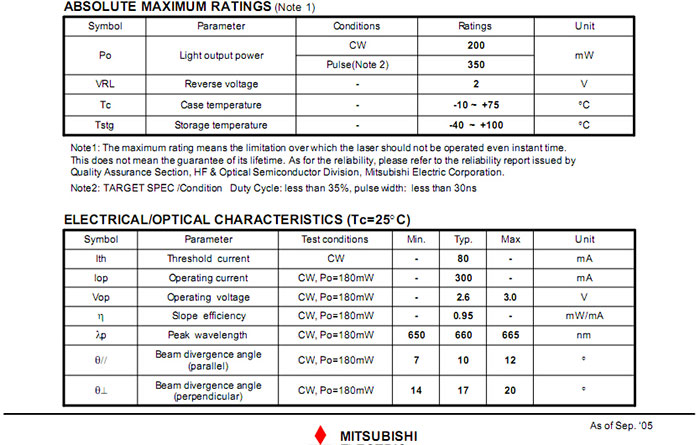

Wavelength: 660 +/- 5nm (red)
Standard power: 200mW
Voltage: 2.2V ~ 3.0V

Current: 340mA

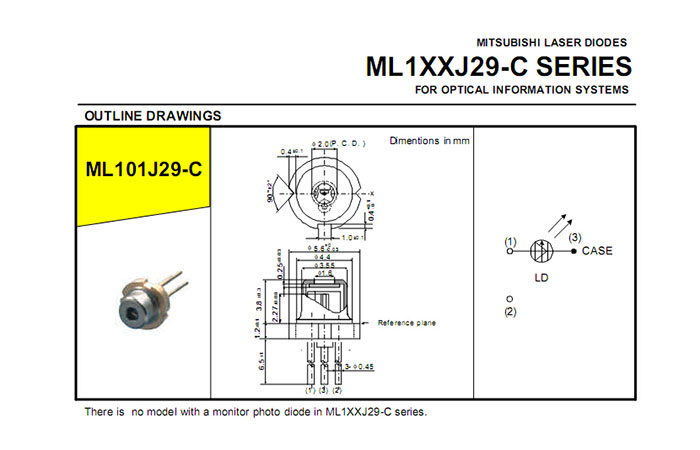

Specifications: TO18 (5.6mm)
Life: more than 10,000 hours

Download the full ML101J29 ML101J29-G Series Specs datasheets
