638nm/700mW Laser diode HL63193MG
Red LD: HL63193MG
Product detail
WL:638nm
Po: 700mW
Multi transverse mode
5.6mmPKG
Application
Show Laser
Laser projector
Light source of optical equipments
Features
Red light emitting: 638nm typ @ 700mW
Optical output power: 700mW CW
Operating current: 900mA typ @ 700mW
Operating voltage: 2.3V typ @ 700mW
Small package: f 5.6mm
Multi transverse mode

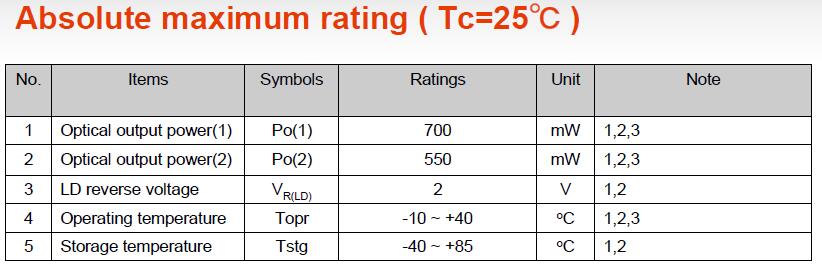

NOTE1:Operating temperature is defined by case temperature. High increase in temperature of LD chip
itself is expected during operation due to high current density.
Thus, without proper heat dissipation, it is observed that no specific output power is achieved or it
results to LD degradation. It is advised that sufficient measure of heat dissipation should be taken
so that LD maximum operating temperature is not exceeded during actual operation.

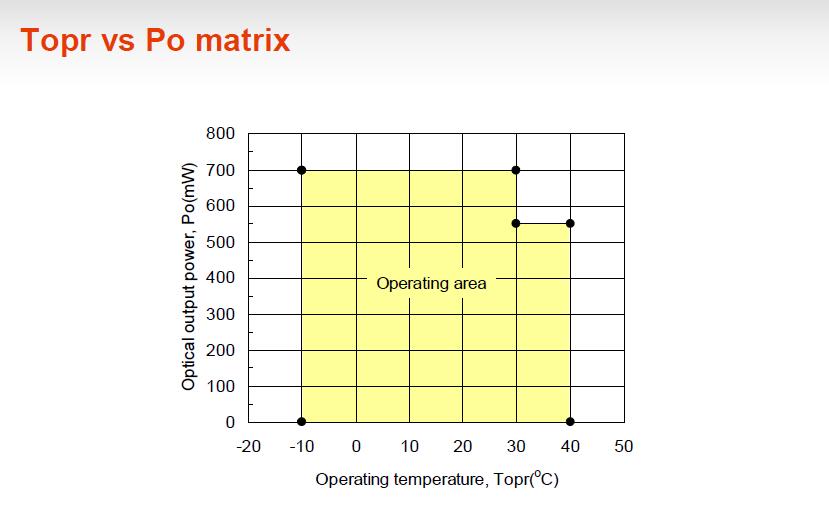

NOTE2:Optical output power rating is changed by operating temperature
