VS-MA-10-1.0-Model C 10 bars 500W Laser Diode Stack Repair
2.Specification
3.Dimension
There are several bottom plate can match with this Model C laser stack as below:
4.product description
This diode laser stack 10bar Model C for hair removal which has 10bars with a aluminum shell. The water hole is at the bottom. The electrode is on the back.
It is used for most of diode laser hair removal machine from China. wavelength 808 or mix wavelength as 755, 808 and 1064.
This diode laser stack usually burn out after working 1year. Then it need to be refresh. Or you can buy a new one to replace the old one.

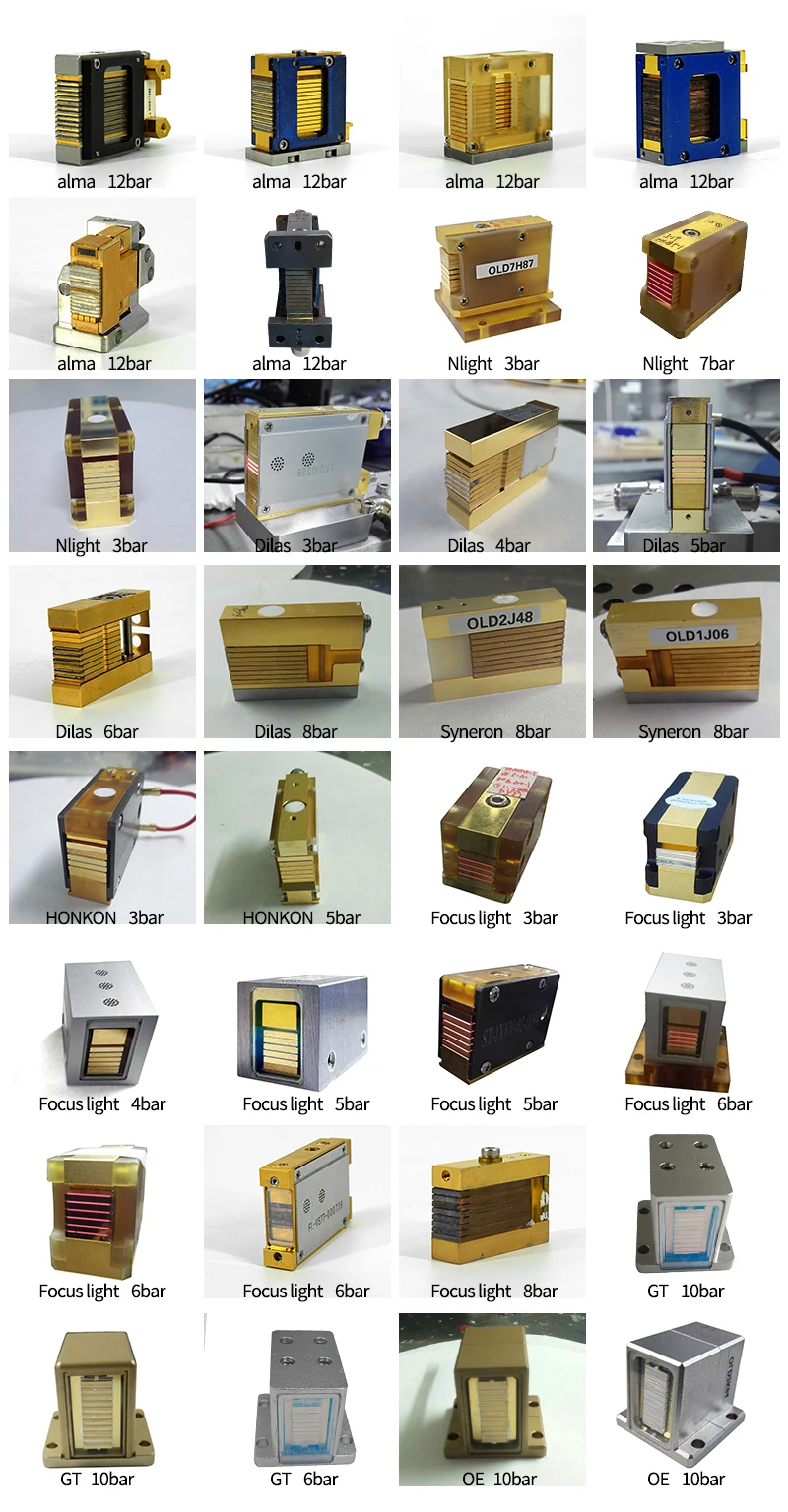

In the past 10 years, we have repaired various brands and different types of macro channel and micro channel cooling lasers(such as alma, dilas, focus light etc.), which are used on laser hair removal handle pieces.
Generally, the main problem of these diode laser stacks is:
Some or all of diode laser bars were burned.
Followings are some reasons that cause burning the diode bar problem
Temperature
* Using machine for too long time. it causes that the temperature becomes too high.
* The water flow rate is low. It causes the bad heat dissipation.
* The room temperature is a bit higher than normal, when using the machine.
Humidity
* The environment for the machine is too humid.
Quality
* Using bad quality diode bar.
* laser diode bar mounting technology couldn not reach the standard.
* The electronic control parameters don not suit for the diode laser stack

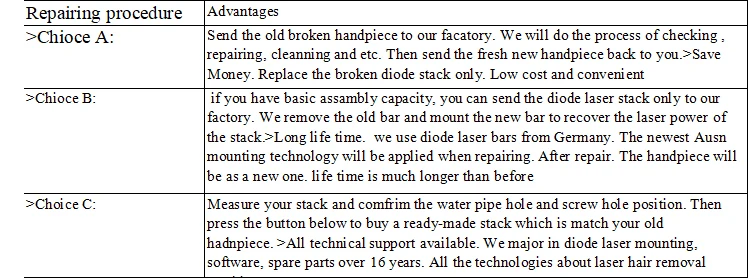

Oriental-Laser Provide Service:
Professional Laser Diode Stack Repair / replacement
Laser Diode Stack Customized
Service Warranty:
Oriental-laser offers 6 months warranty for the micro channel cooled laser stack.
