450nm 100mw Blue Laser Diode
Output wavelength: 450nm

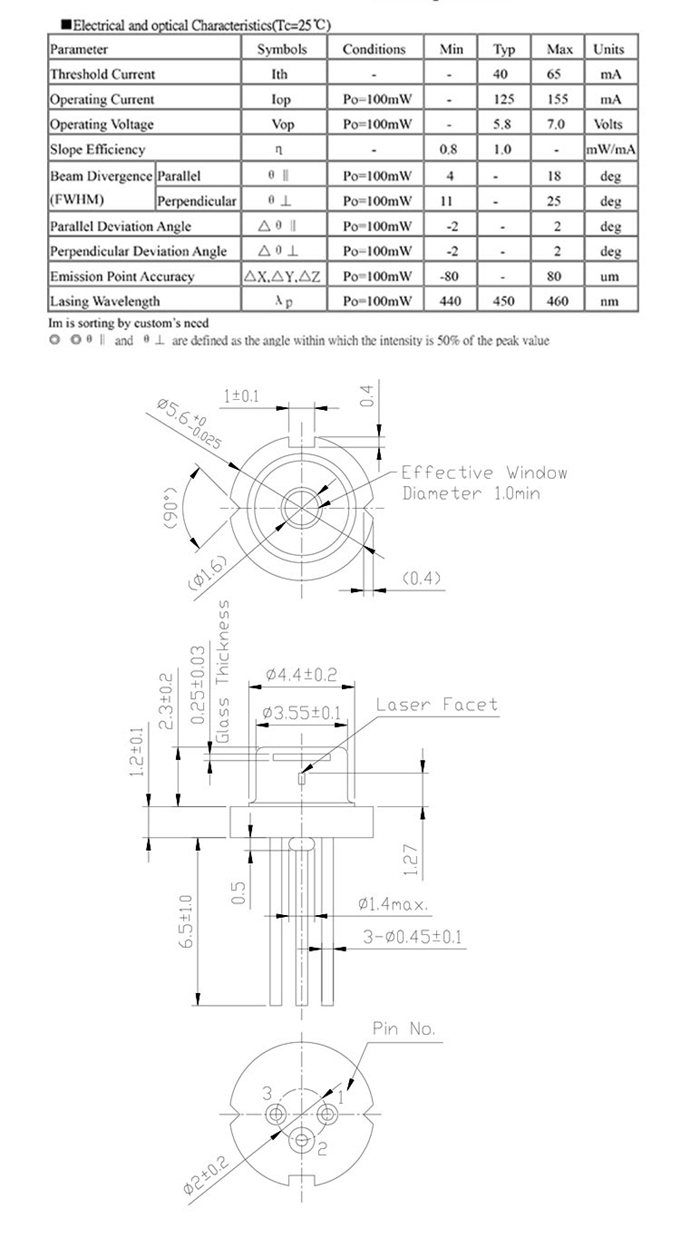

Size: φ5.6x10.3mm
Voltage: DC 5.8v
Power: ≤100MW
Maximum operating current: 155mA
Operating Temperature: +10~ +70℃
Storage Temperature: -40~+85℃
Encapsulation Mode: TO-18
Laser Safety Rating: ClassIIIb (5-500MW)

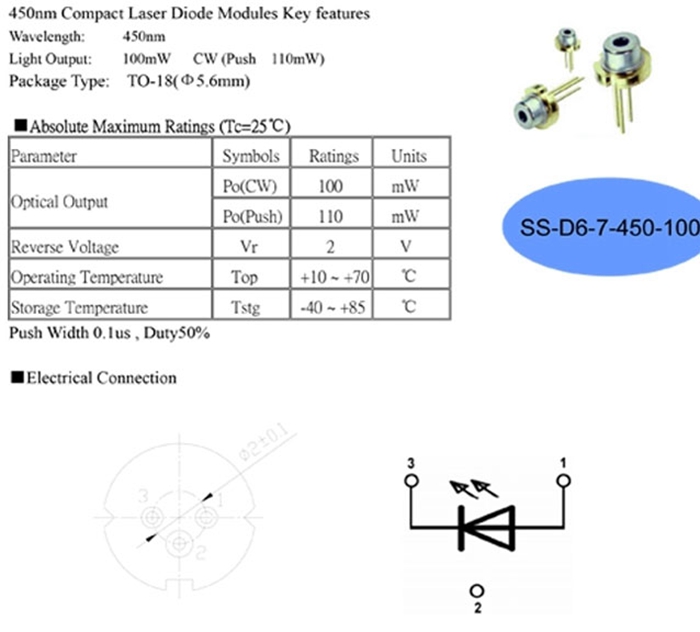

Absolute Maximum Ratings ( Tc=25℃ ）
Optical Output : Po (CW) 100mW
Po (Push) 110mW
Reverse Voltage : 2V
Operating Temperature: +10~ +70 ℃
Storage Temperature: -40~ +85 ℃
Push Width 0.1us,Duty 50%
Electrical and optical Characteristics ( Tc=25℃ ）
Threshold current : 65mA
Operating current: 155mA
Operating voltage: 7.0 Volts
Slope Efficiency: 0.8 mW/mA
Beam Divergence: Parallel 4~ 18 deg
Perpendicular 11~ 25deg
Parallel Deviation Angle: -2 ~2 deg
Perpendicular Deviation Angle: -2 ~2 deg
Emission point accuracy: -80 ~ 80 um
Lasing Wavelength: 440 ~ 460nm
