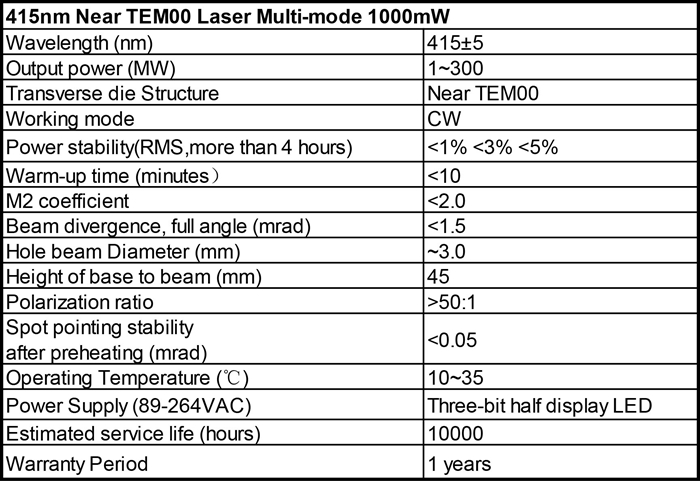

Details: 415nm Near TEM00 Laser Multi-mode 1000mW Output Power
Wavelength (nm):415±5


Violet diode laser module at 415nm is made features of ultra compact,long lifetime,low cost and easy operating, which is used in measurement, communication, spectrum analysis, etc.
Output power (MW):1~300
Transverse die Structure:Near TEM00
Working mode:CW
Power stability (RMS, more than 4 hours):<1% <3% <5%
Warm-up time (minutes):<10
M2 coefficient:<2.0
Beam divergence, full angle (mrad):<1.5
Hole beam Diameter (mm):~3.0
Height of base to beam (mm):45
Polarization ratio:>50:1
Spot pointing stability after preheating (mrad):<0.05
Operating Temperature (℃):10~35
Power Supply (89-264VAC):Three-bit half display LED
Estimated service life (hours):10000
Warranty Period:1 years
