405nm CW180mW SLD3239VFR Laser Diodes
405nm CW180mW SLD3239VFR Laser Diodes

Price:   $39.00

Add to Cart:

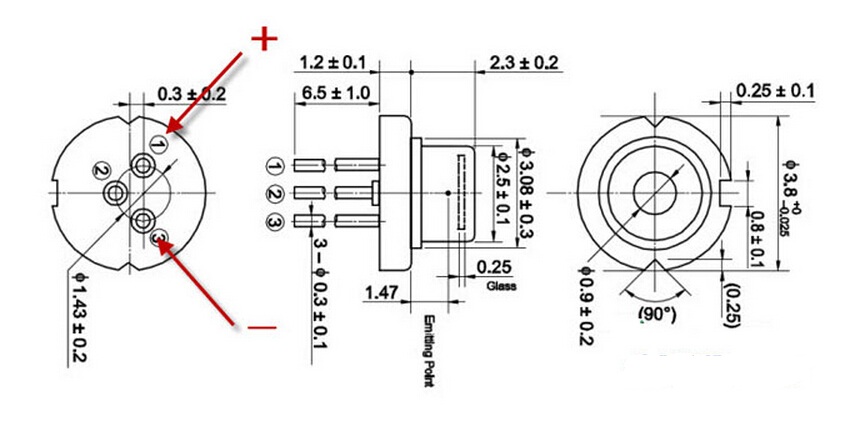

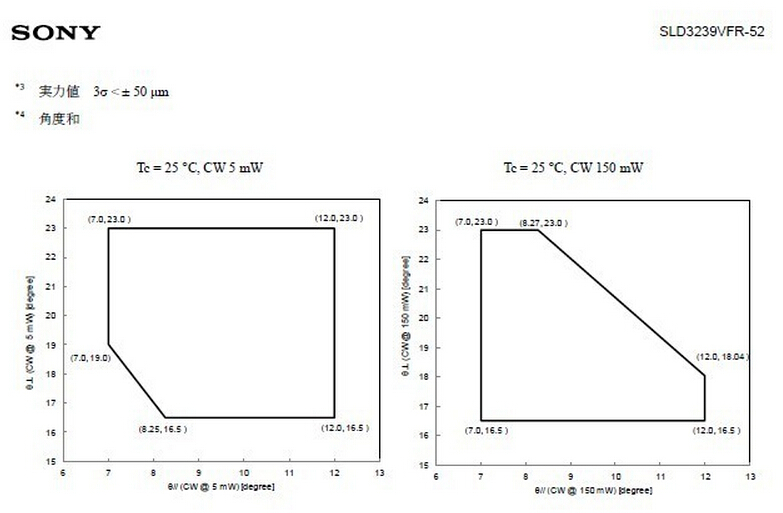

High quality original blue violet laser diodes, made in Japan, SLD3239VFR . SLD series laser diodes are 405nm laser, made by Sone company in Japan. CW 180mW continuous output power of 180mW. Please refer to the pictures below.

Output  Power: CW 180mW, Pomax 360mW
Working Current: < 260mA
Working Voltage: 5V
Package: 3.8mm
Working life: >10,000 hours
Electro-Static discharge precautions

This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
