Details:
Single Mode 1550nm DFB Laser Diode with Built-in monitor PD.
Features:
Low threshold/operate current
High reliability
Advanced Multiple Quantum Well(MQW)
Distributed Feedback for DFB Design
Low threshold current
Built-in InGaAsP monitor PD
Cost-effective Uncooled Laser Technology
5.6-mm TO-style package with SMF pigtail
Output Power: 1mW~10mW
Package:Pigtail
Connector: FC,SC,LC
Isolation: Yes

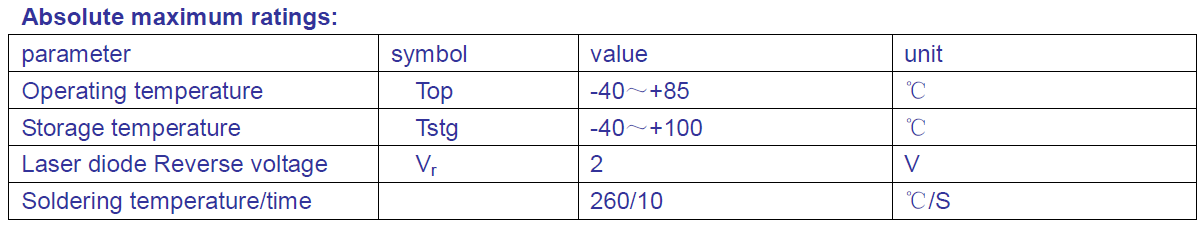

Operating temperature: -40~+85 ℃
Storage temperature :-40~+100 ℃
Laser diode Reverse :2 V
Soldering temperature/time :260/10 ℃/S
Applications:
Optical Sensing
Optical communication
Industrial automatic control
Science analysis and experiment
Test and Measurement Equipment
CATV Return-Path
Analog transmission
Other Analog or Diagital
Optical Transmission
