1480nm 5mw DFB InGaAsP Laser Diodes

1480nm 5mw InGaAsP DFB LASER DIODES ML925B16F



It's a 1480nm Laser Diode LD, check this 1480nm Solid State Diode Laser Fiber Coupled  1-10W Output Power



ML9XX11,ML9XX16 and ML9XX22 series are DFB laser diodes emitting light beam with emission wave length of 1470 ~ 1610nm.

They are well suited for light source in long distance digital transmission application of coarse WDM.

They are hermetically sealed devices with the photo diode for optical output monitoring.

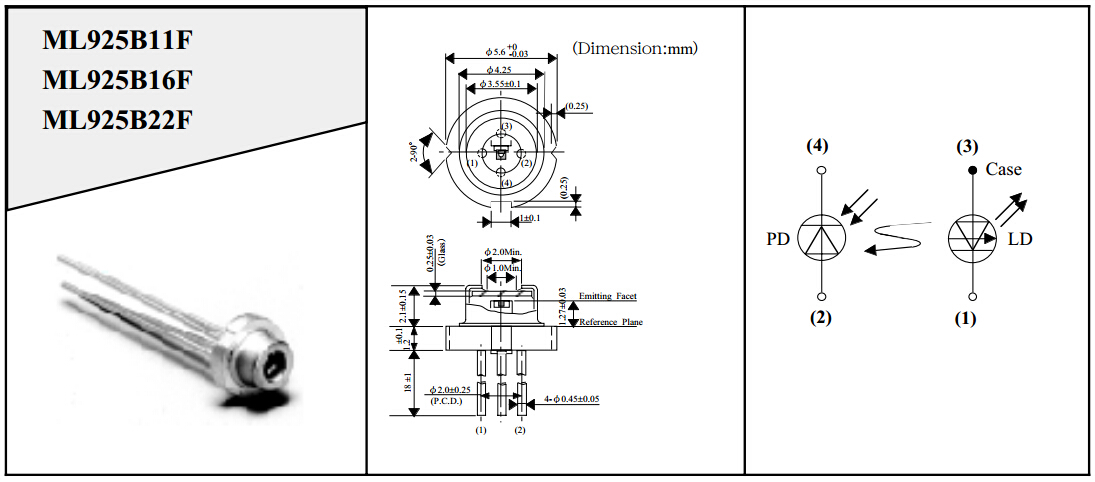

ML925B11F / ML925B16F / ML925B22F



APPLICATION



Long - distance digital transmission system

Coarse WDM application





FEATURES



Low threshold current (typical 10mA)

Wide temperature range operation

High - side mode suppression ratio (typical 40dB)

High speed response (typical 0.2nsec)

MQW* active layer



FSBH** structure fabricated by MOCVD process

* Multiple Quantum Well

** Facet Selective - growth Buried Hetero structure
