Description:

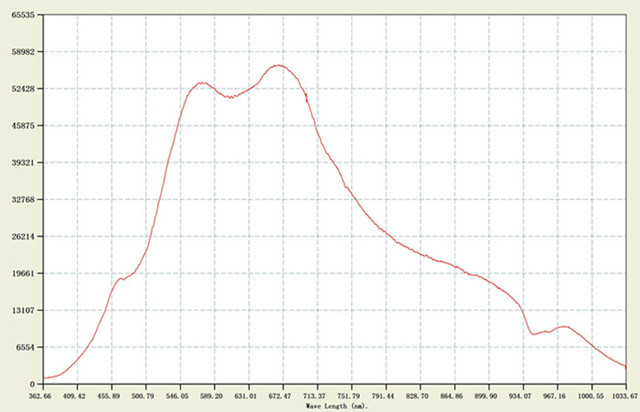

The visible band quartz fiber with SMA905 fiber interface material is quartz, and the related applications and experiment with the the JA2000 type fiber optic spectrometer used in the visible band. Below is the use of visible light band quartz fiber optic in JA2000 spectrometer measured the spectrum of tungsten halogen lamp.

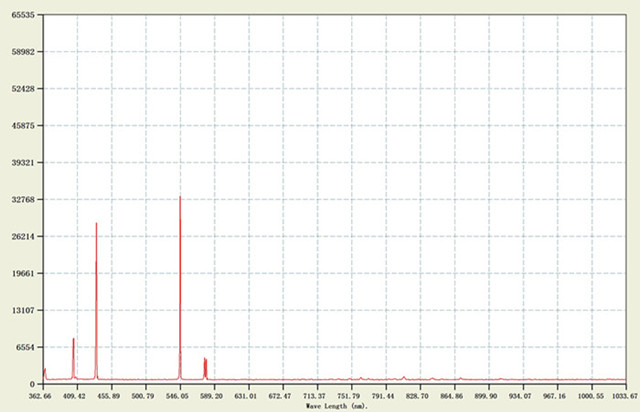

The following picture shows the use of the economic fiber-optic light source spectrum measured in the under JA2000 type spectrometer A (integrating sphere 300mm), with the mercury lamp spectrum.
Field of application:
This optical fiber can be applied in the transmittance of visible bands, the absorption rate, experiment, small power laser detection, fluorescence detection, color measurement, LED sorting areas
Parameters:
Length：1.5m
Transmission range：330-2500nm
Optical interface：SMA905
Quartz inner diameter：0.5mm
Protective sleeve OD：3.4mm
Material：Quartz
