UV-visible band quartz fiber with SMA905 fiber interface material is fused silica, with the the JA2000 type fiber optic spectrometer used in the UV to visible light band applications and experiments. Especially suitable for use with ultraviolet fiber optic spectrometer.

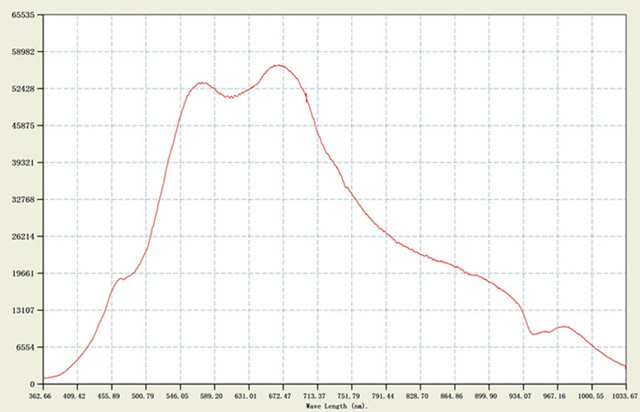

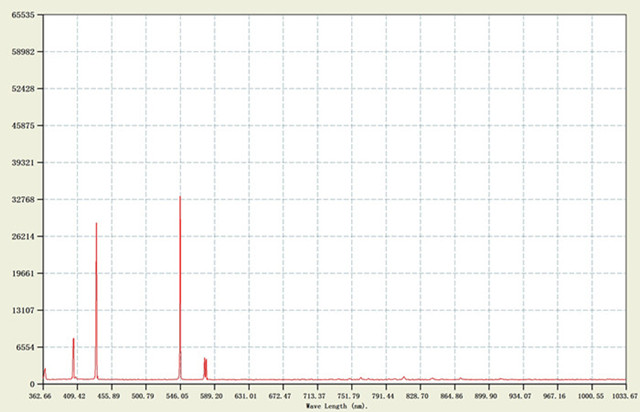

The figure below shows the visible band quartz fiber in JA2000 type A (ultraviolet to visible) spectrometer measured light source spectrum.
Field of application:
This fiber is suitable for the UV absorbance detection band, and the ultraviolet to the visible band chroma detection.
Parameters:
Length：1.5m
Transmission range：185-2500nm
Optical interface： SMA905
Quartz inner diameter： 0.5mm
Protective sleeve OD：3.4mm
Material：UV quartz
