Sanwa High input impedance 1000MΩ RD700
Sanwa High input impedance 1000MΩ RD700

Price:   $299.00

Add to Cart:

Details: Sanwa High input impedance 1000MΩ  RD700

  • High input impedance 1000MΩ
  • 3-3 / 4 digits 4000 count
  • 0.3% best accuracy
  • AC True RMS ※RD701 only
  • Capacitance measurement
        ※Not suitable for measurement of condensers with large leak current.
  • K type temperature
    ※Optional accessory K-AD is necessary.
    ※K type temp. sensor K-250PC is included as a standard accessory
  • Frequency measurement
  ※Input voltage : 20VACrms and under
  ※Input signal : sign wave or square wave with 40%-70% duty
 ※Input sensitivity : 10Hz~20kHz/0.9Vrms and above
     :  20kHz~500kHz/2.6Vp or 1.9Vrms and above
     : 500kHz~1MHz/4.2Vp or 3Vrms and above
  • ADP function (for current sensor)
  •  Max recording measurement
  • Data hold / Range hold
  • Relative value
  • Auto power off (30min.) (cancelable)
  • Alarm for improper test lead insertion to current terminal
  • Protective holster with wall hanger and lead holder
  • Tilt stand

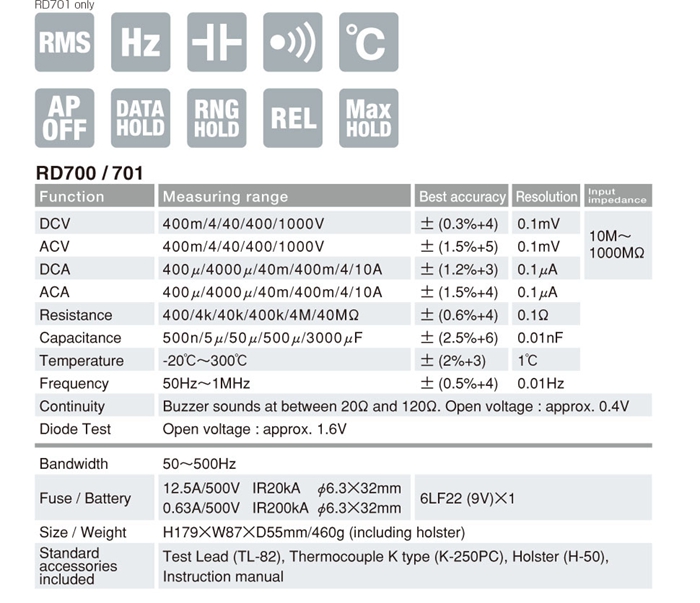

Display : numeral display 4000 (Hz : 9999, capacitance : 5000)
Sampling rate:  3 times / sec. (Hz : 2 times / sec.)
AC Frequency bandwidth : 50~500Hz
Safety:  IEC61010-1 (EN61010-1) 2001-02 CAT.Ⅲ 600V  Max. / CAT.Ⅱ1000V Max.
