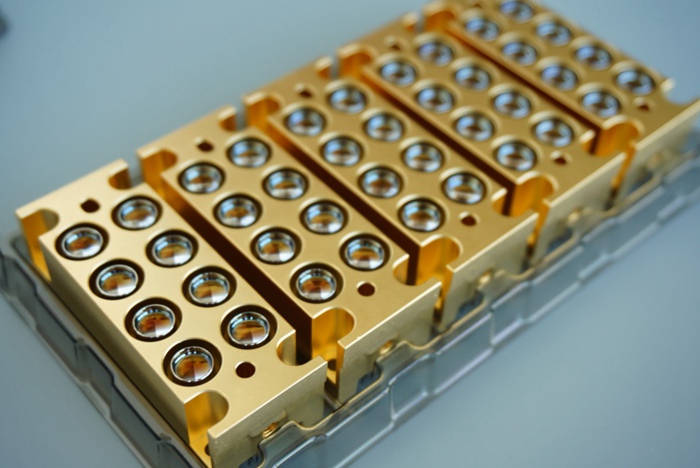

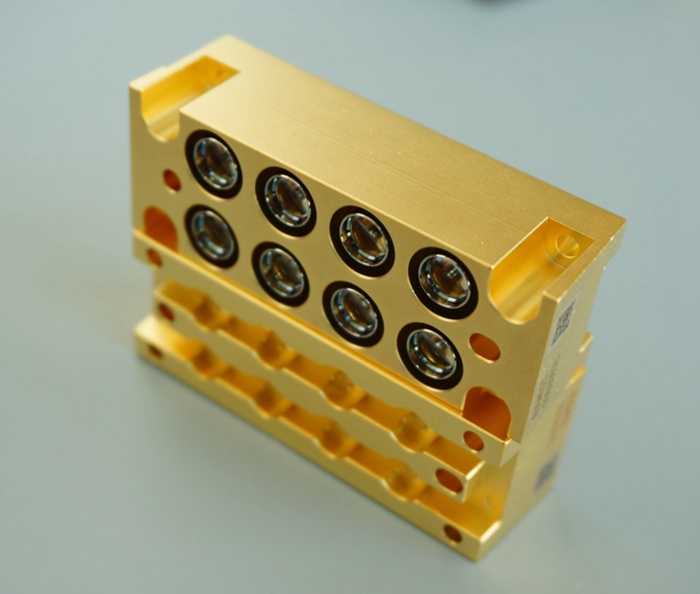

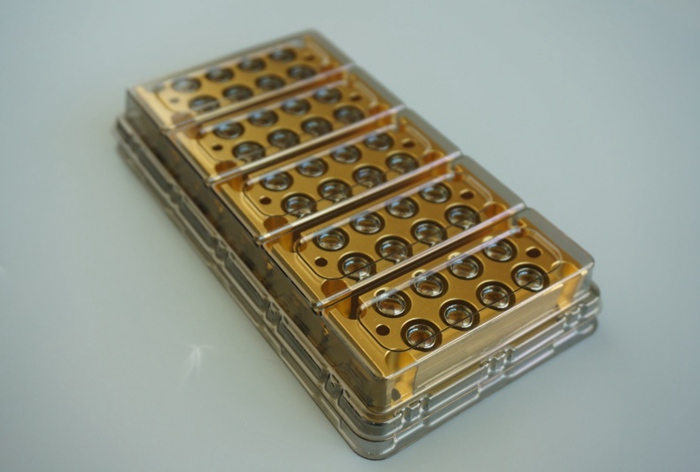

NUBM08 Nichia 455nm 38w Laser array
NUBM08 Nichia 455nm 38w Laser array

Price:   $290.00

Add to Cart:

Details:
NUBM08 Nichia 455nm 38w Laser Array. Specs in PDF.

Absolute Maximum Ratings:

Forward Current:3.0A
Allowable Reverse Current: 85mA
Storage Temperature:-40~ 85
Operating Case Temperature:0~ 60

Initial Electrical/Optical Characteristics:

Optical Output Power: Codition If=2.3A Symbol Po Min 3.4 Typ.(3.5) Unit W
Dominant Wavelength: Codition If=2.3A Symbol Min 440 Typ.(448) Unit nm
Threshold Current: Codition CW Symbol Ith Min 200 Typ.270 Max 350 Unit mA
Slope Efficiency: Codition CW Symbol Min 1.5 Typ.1.7 Max 2.0 Unit W/A
Operating Voltage: Codition If=2.3A Symbol Vop Min 4.0 Typ.4.3 Max 4.7 Unit V
Beam Divergence:Parallel: Codition If=2.3A Symbol θ// Min 10 Type (14) Max 20 Unit deg.
Beam Divergence:Perpendicular: Codition If=2.3A Symbol θ⊥ Min 40 Type (46) Max 20 Unit deg.
Beam Pointing Accuracy Condition If=2.3A Symbol Min -3 Max 3 Unit deg.
