HS Series of Semiconductor Linear Array Laser
HS Series of Semiconductor Linear Array Laser

Price:   $9,000.00

Add to Cart:

Details:

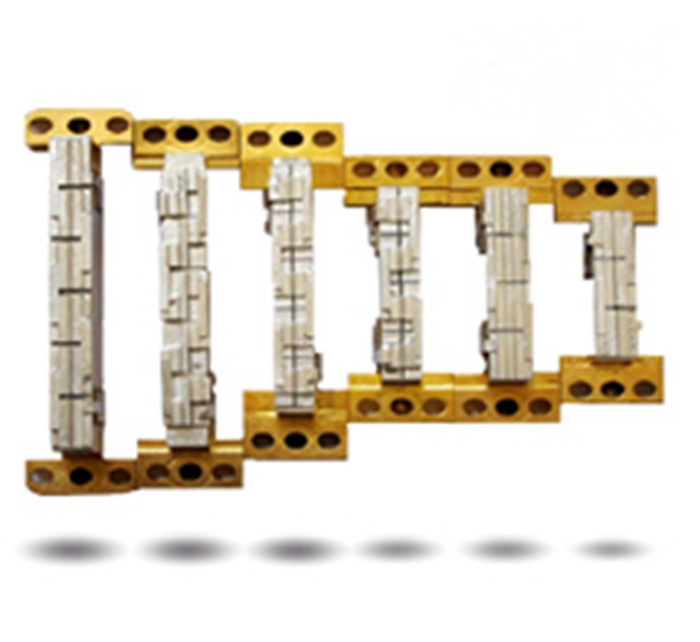

HS Series of Semiconductor  Linear Array Laser


Horizontal encapsulated semiconductor laser array

German imports chip
Heat sink size can be customized
Service life> 10000 hours


1. HSCW series of continuous semiconductor laser horizontal array:

Product Type: HSCW-20-3 Typical Power: 60W Operating Current: 25A Operating Voltage: <6V
Product Type: HSCW-20-4 Typical Power: 80W Operating Current: 25A Operating Voltage: <8V
Product Type: HSCW-40-3 Typical Power: 120W Operating Current: 38A Operating Voltage: <6V
Product Type: HSCW-40-4 Typical Power: 160W Working Current: 38A Working Voltage: <8V

Note: Model definition rules HSC W-20-N or HSC W-40-N are N 20W or 40W continuous BAR array, N≤20;

2. HSQCW series of quasi-continuous semiconductor laser horizontal array

Product Type: HSQCW-100 ~ 300-N
Typical power: QCW 100 ~ 300 * N
Repetition frequency: 0-1000Hz
Pulse width: 50-300 μs
Design duty cycle: ≦ 10% or ≦ 20%


Note: Model definition rules HSQCW-100 ~ 300-N, N 100 ~ 300 quasi-continuous BAR bar array, the unit ceramic can do single BAR, double BAR package; According to the application to determine the impact factors, including pulse width, frequency, thermal structure.


Current Reviews: 0
