Details: High Stability Violet Blue Laser 405 nm 1-2W
It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are widely used in measurement, communication, spectrum analysis.
SPECIFICATIONS
Central wavelength (nm) | 405±5 |
|
|
|
|
Operating mode | CW |
|
|
|
|
Output power (mW) | 1000 | 2000 |
|
|
|
Power stability (rms, over 4 hours) | <1%, <2%, <3% |
|
|
|
|
Polarization direction | Horizontal+ Vertical |
|
|
|
|
Beam diameter at the aperture (mm) | ~4×3 | ~4×8 |
|
|
|
Beam divergence, full angle (mrad) | <0.5×0.3 |
|
|
|
|
Warm-up time (minutes) | <5 |
|
|
|
|

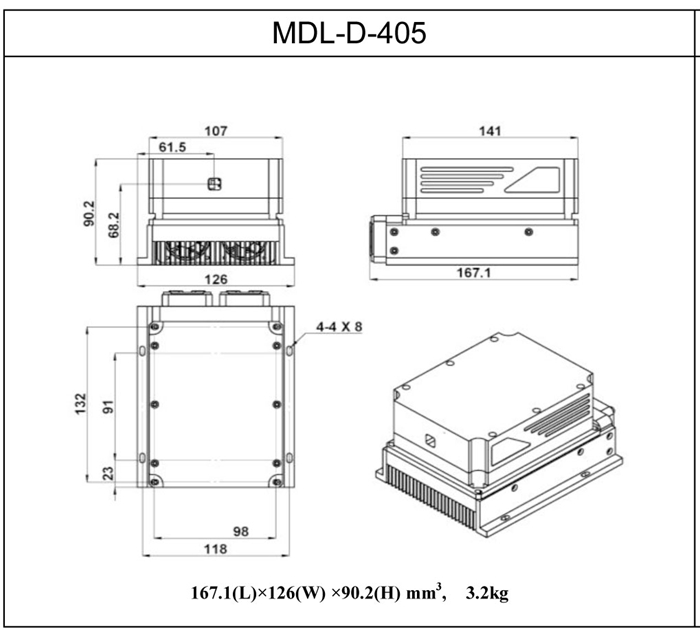

Beam height from base plate (mm) | 68.2 |
|
|
|
|
Operating temperature (℃) | 10-35 |
|
|
|
|

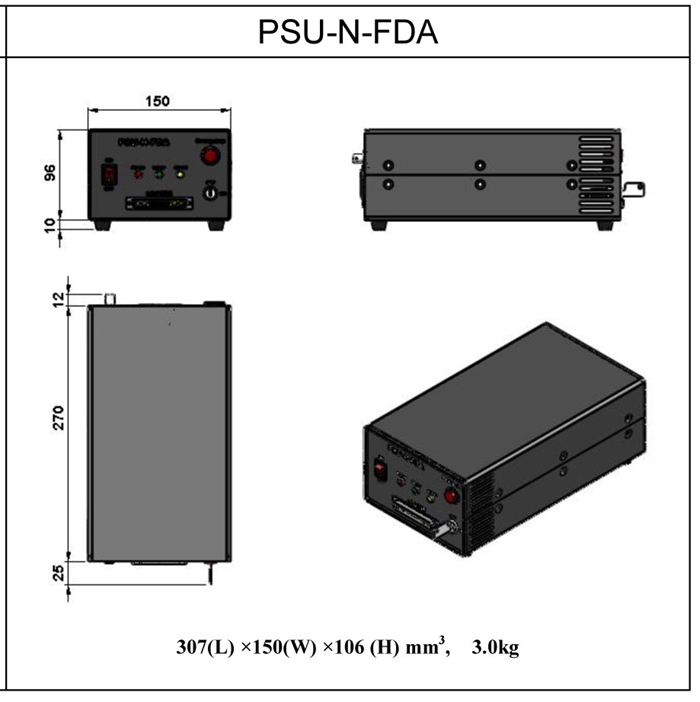

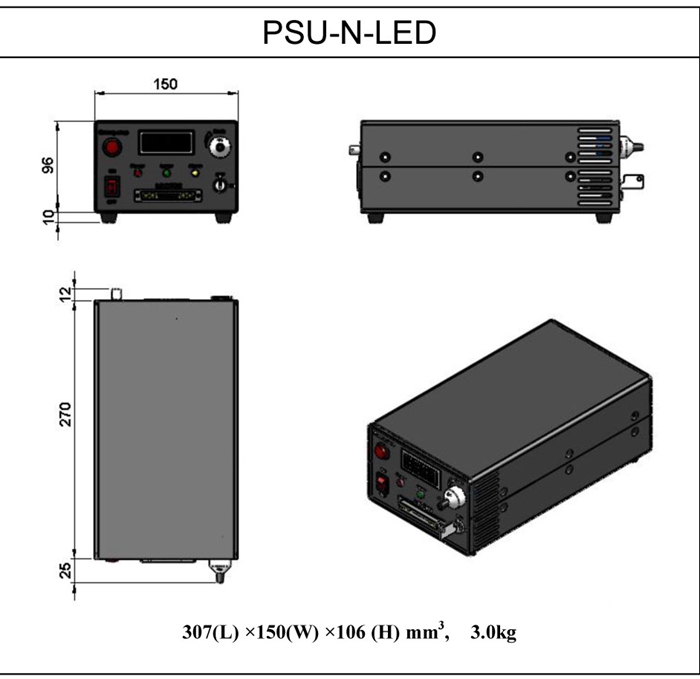

Power supply (100-240VAC) | PSU-N-LED/ PSU-N-FDA |
|
|
| |
TTL / Analog modulation | TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional | |
|
|
|
Expected lifetime (hours) | 10000 |
|
|
|
|
Warranty | 1 year |
