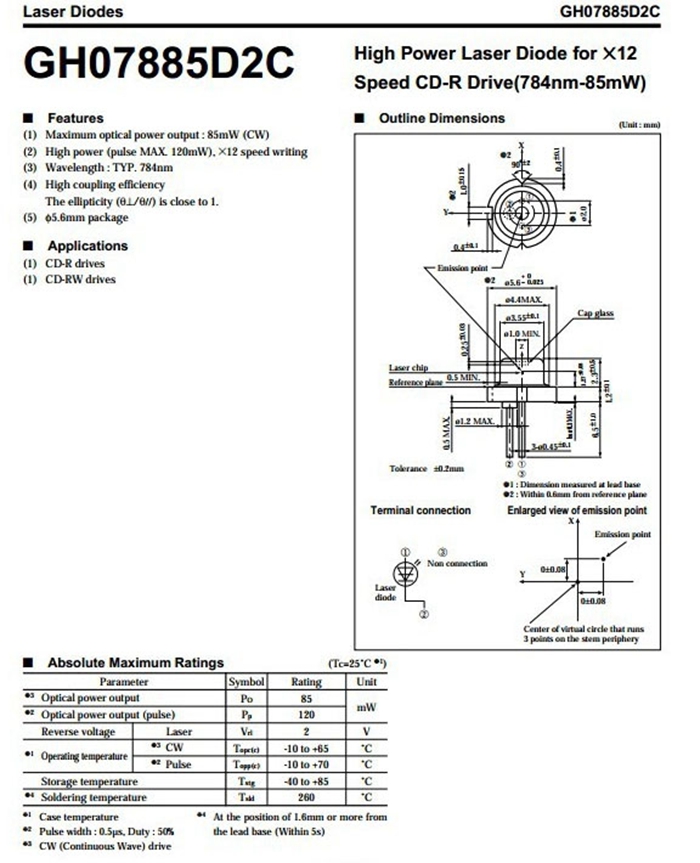

High Power Sharp GH07885D2CS1 784nm 85mW Laser Diode
High Power Sharp GH07885D2CS1 784nm 85mW Laser Diode

Price:   $19.99

Add to Cart:

Details:
High Power Laser Diode for x 12 Speed CD-R Drive( 784nm-85mW)

Feature:
  • Maximum optical power output: 85mW(CW)
  • High power(pulse MAX.120mW).X12 Speed writing
  • Wavelengh :TYP.784nm
  • High Coupling efficiency The ellipticity is is close to 1.
  • ⌀ 5.6mm package
Applications:

  • CD-R drives
  • CD-RW drives
Absolute Maximum Ratings:

Optical power output: 85mW
Optical power output ( pulse): 120mW
Reverse voltage: 2v
Operating temperature:-10 to +65 ℃ (CW)
                                         -10 to +70 ℃  ( Pulse)
Storage temperature:  -40 to +85 ℃
Soldering temperature: 260 ℃
