High Peak Power 1550nm Erbium Ytterbium Co-doped Pulsed Fiber Laser

$7,889.00
Add to Cart:

The high peak power Erbium/Ytterbium co-doped pulsed fiber laser series are specially designed and developed to address LIDAR and remote sensing applications. These lasers are an “eye safe” version, and have a broad range of pulse widths and repetition rates, peak power and energy per pulse as well as linear or random operation.

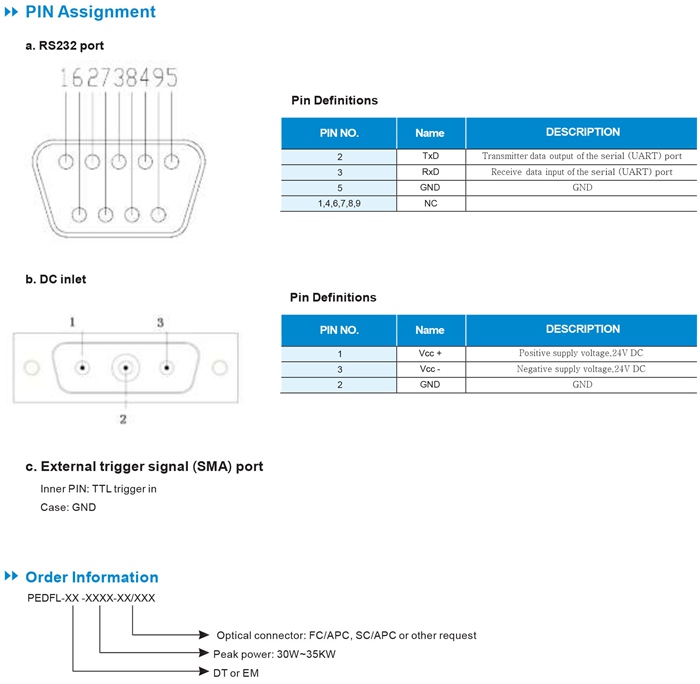

The 1550nm Pulsed Fiber Laser series are based on a MOPA configuration (Master Oscillator Power Amplifier) those use laser pulse generation, triggering, gating and ASE suppression technologies, ensuring laser pulses characteristic is easily to be controlled and adjusted optionally for applications. The pulsed laser series provide an effective management interface for user to control key operating parameters. The pulsed laser presents RS-232 interface flexibly, ensuring the connectivity with customer’s control system. The modulation frequency is controlled by External Trigger.
The 1550nm Pulsed Fiber Laser is specially designed and developed to address LIDAR and remote sensing applications. The laser is an “eye safe” version, and has a broad range of pulse widths and repetition rates, peak power and energy per pulse

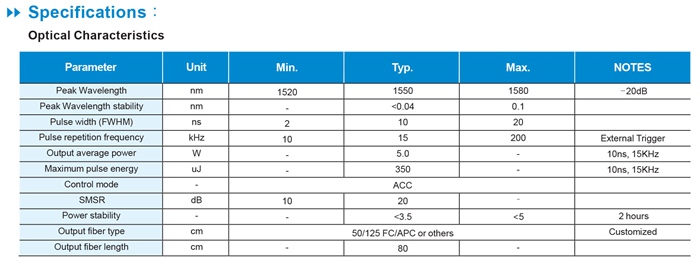

Peak Wavelength: 1520nm ~ 1580nm
Peak Wavelength stability: 0.1nm
Pulse width (FWHM): 2 ~ 20ns
Pulse repetition frequency: 10 ~ 200kHz
SMSR: 10dB
Power stability: <5





Add to Cart:
