High Energy 1.064um Q-switched Pulsed Laser

$18,900.00
Add to Cart:

High energy 1064nm 100-170mJ Q-switched (EOM) Pulsed Near Infrared Laser System. Both of the single pulse energy and beam divergence are customized. The pulsed laser use AOM to get the high energy.Repetition frequency as high as 20Mhz. Diameters and Weight, 486 (L) 160(W) 153(H) mm3, 15 kg.


Features:

High energy up to 170mJ
Lightweight, compact design
Superior beam quality
Flexible interface concept: analog
Water-to-Air cooled
Best reliability and lifetime


Specifications:

Wavelength (um):1.064um
Operating mode: Q-switched,EOM (Electro-optic modulation)
Single pulse energy (mJ):100~170
Pulse duration (ns):<10
Rep. rate (Hz):1~20 (adjustable)
Energy stability:≤3%
Warm-up time (minutes):<15
Beam divergence, harf angle (mrad):~0.5
Beam diameter (mm):<6, 7
Beam height from base plate (mm):118

Cooled method:Water-to-air Cooled
Operating temperature (℃):20~30

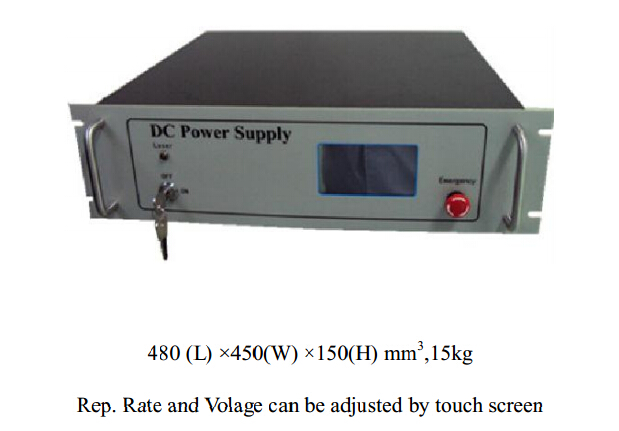

Power supply (220/110VAC):PSU-LPS-A(3U)
Expected lifetime (pulses):107~108
Warranty period:1 year
Available Options:SHG Module, Jitter~1ns, Sdev
Diameters and Weight:486 (L) 160(W) 153(H) mm3, 15 kg

Applications:

Laser distance measuring
Scientific experiment
Optical instrument
Marking
Research
Industry
