The Gimbal Mounts provide independent, precision pitch and azimuth adjustment with interferometric stability. These compact mounts accommodate a large variety of mirrors, beam splitters and other optical components up to 4 inches in diameter.
Compact Gimbal Mirror Mounts with 2 adjusters:
For Optics: Ø1”, 2”
Adjustable Axis: (θx, θy)
Optics Thickness: Min 3 mm (CGM-1) / 6.01 mm (CGM-2)
Travel Range: ± 4˚
Weight: 0.16 kg, 0.25 kg
Compact, true gimbal designed
0.3 mrad resolution°
Unique disc-spring design
Material : Aluminum
Matric Version
100 pitch screws available

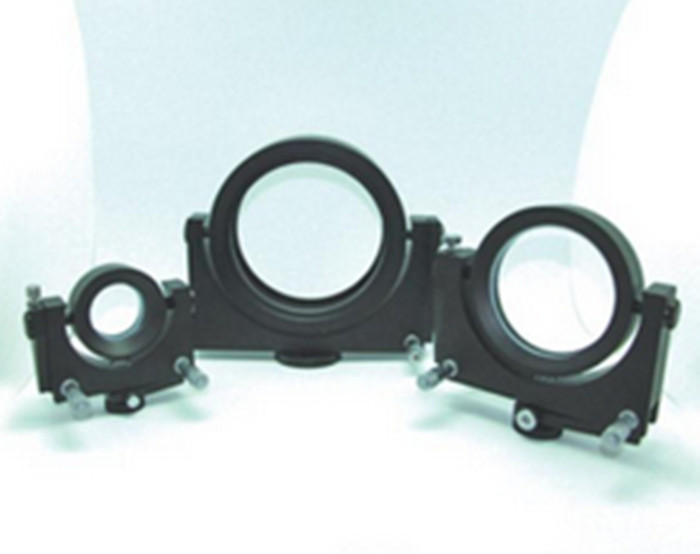

Gimbal Mount for Beamsplitters:
For Optics: Ø2”, 4”
Adjustable Axis: (θx, θy)
Travel Range: ± 5˚
Weight: 0.76 kg, 1.2 kg
3 Types of driven screw with 13mm travel (θx and θy)
Center Mount 360 degree rotary
Retaining ring protect lens
Gimbal adjusting for great stability
Material : Aluminum
Matric Version
100 pitch / 130 pitch screws available
