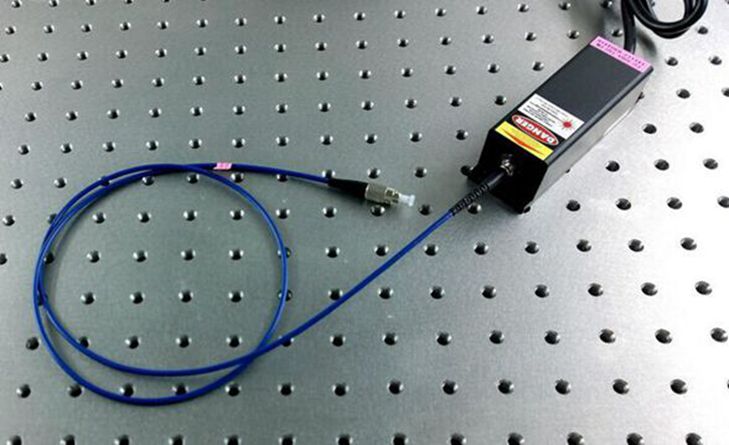

Fiber Coupled 415nm UV Solid State lasers

Add to Cart:

Fiber coupled 415nm UV solid-state lasers with max output power of 300mW.

Wavelength (nm): 415±5nm
Output power (mW): 1-300mW
Transverse mode:Near TEM00
M2 factor: <2.0
Operating mode: CW
Power stability (rms, over 4 hours):<1% <3% <5%
Warm-up time (minutes): <10
Beam divergence, full angle (mrad): <1.5
Beam diameter at the aperture (mm): 3.0
Polarization ratio: >50:1
Beam height from base plate (mm): 45
Pointing stability after warm-up (μrad/°C): <0.05
Operating temperature (℃):10~35
Power supply:(89-264VAC)
Expected lifetime:(hours) 10000
Dimensions: 35mm x 35mm x 102mm
Warranty period:1 year
