C-mount 1550 nm Laser Diode
C-mount 1550 nm Laser Diode

Price:   $479.00

Add to Cart:

Details:
Laser Diode in C-mount Package 1550 nm . C-mount is an ideal component for quick prototyping and laboratory setups. However, the maximum output power is typically limited by the inherently sub-optimal heat dissipation properties of the C-mount itself.

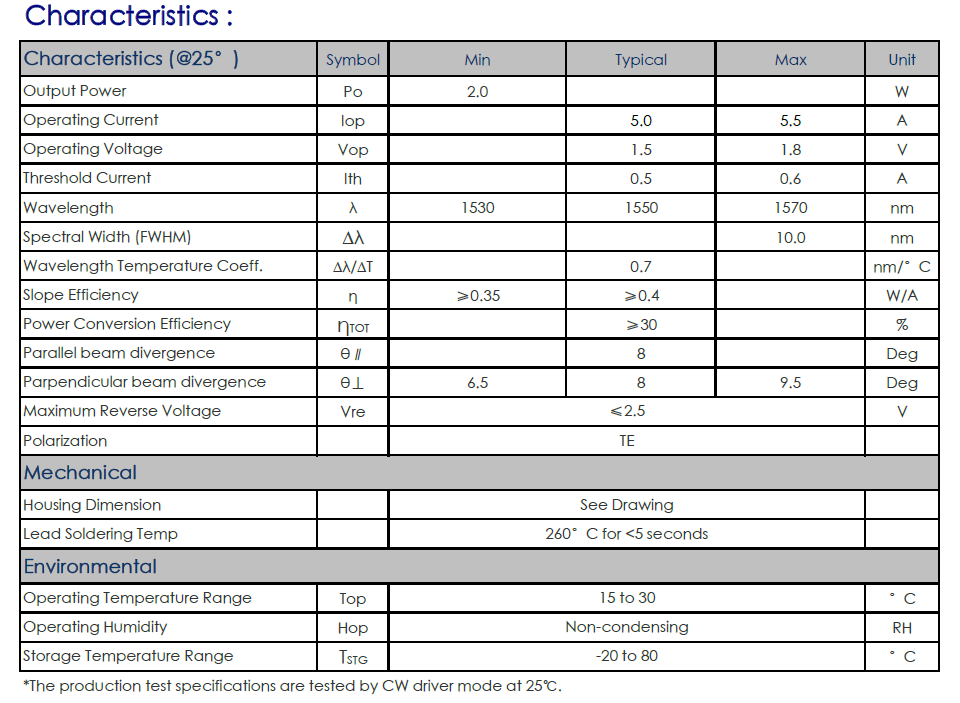

Output power: 2.0 W
Operating Current:5.0-5.5 A
Operating Voltage: 1.5-1.8 V
Threshold Current: 0.5-0.6 A
Wavelength:1530-1570 nm
Spectral Width(FWHM):10.0 nm
Wavelength Temperature Coeff.:0.7 nm/°C
Slope Efficiency: min≥0.35  max≥0.4 W/A
Power Conversion Efficiency: ≥30 %
Parallel beam divergence: 8 Deg
Parpendicular beam divergence: 6.5-9.5 Deg
Maximum Reverse Voltage:Vre ≤2.5 V
Polarization: TE


Mechanical

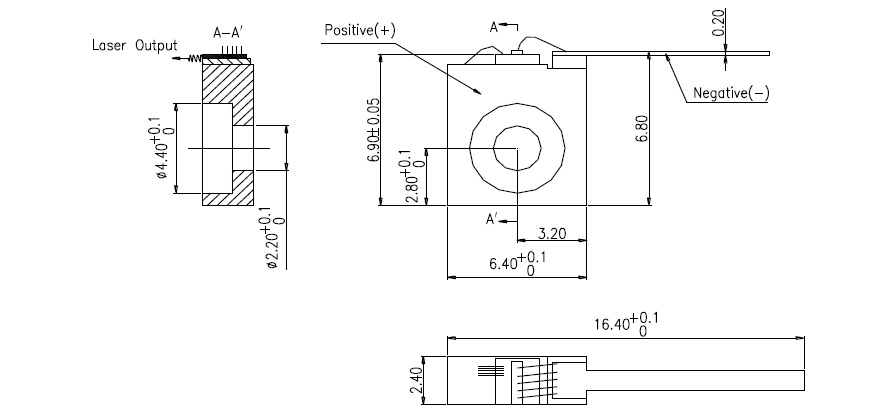

Housing Dimension: See Drawing
Lead Soldering Temp: 260°C for <5 seconds


Environmental
Operaating Temperature Range: 15-30 °C
Operating Humidity: Non-condensing
Storage Temperature Range: ﹣20 to 80 °C
