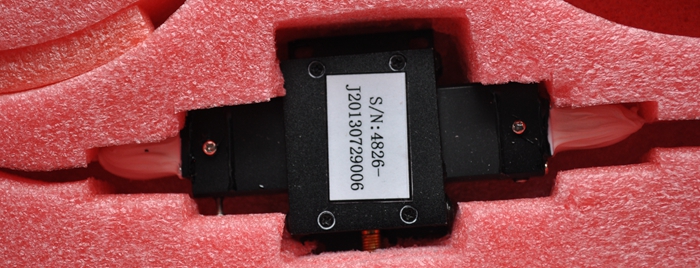

Acoustic Optic Modulator at 1550 nm

$3,900.00
Add to Cart:

Acoustic Optic Modulator at 1550 nm , the AOM driver is not included in this product.

Characteristic:

Interaction material- Tellurium dioxide

Wavelength-1530-1565 nm

Average optical power handling-5 W

Peak (pulse) optical power handing-30 kW

Insertion loss-2-3 dB

Polarization extinction ratio-18-20 dB

Extinction ratio (1st order on / off)- 50 dB

Return loss (RF ON / RF OFF) -40 dB

Rise-time / Fall-time (10% - 90%)-50 ns

Frequency-100 MHz

VSWR-1.2:1

Input impedance-50 Ohms

RF power-3.0 W

Frequency shift-80 MHz (upshift)

Fiber dimensions- Polarization maintaining - 10 micron core diameter - 125 micron cladding diameter

Fiber type- Fujikura PM 1550 nm (SM15-PS-U25A)

Fiber length-1.5 m with 900 micron PVDF sleeving

Fiber termination- Bare fiber
