500mw 635/638nm Laser Diode ML510P73
500mw 635/638nm Laser Diode ML510P73

Price:   $99.00

Add to Cart:

Details:
500mw  635/638nm Laser Diode ML510P73-02
ML501P73 is a high-power, highly
efficient semiconductor laser diode which provides emission wavelength of638 nm and standard light output of1 .0W(Pulse).
This LD has broad-stripe structure which enables high output power.

FEATURES
• High Output Power: 1.0W(Pulse)
• High Efficiency: 1.0mW/mA(typ.)
• Visible Light: 638nm(typ.)

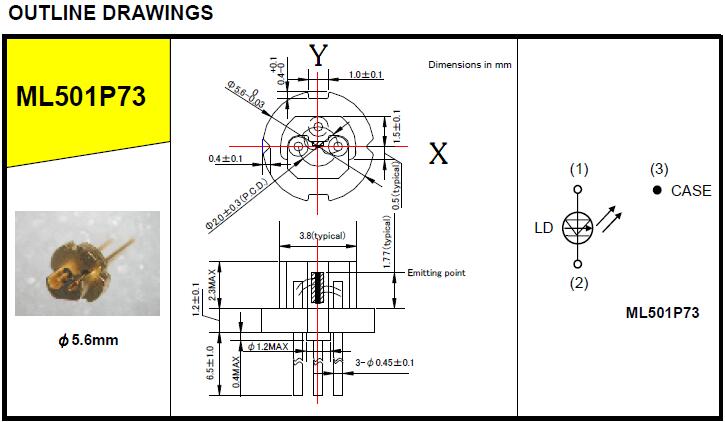

•φ5.6mm Capless PKG

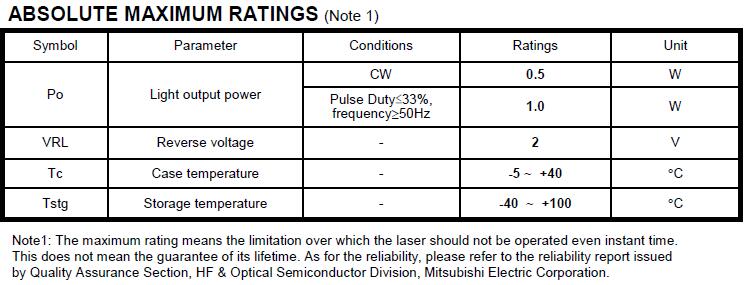

ABSOLUTE MAXIMUM RATINGS
