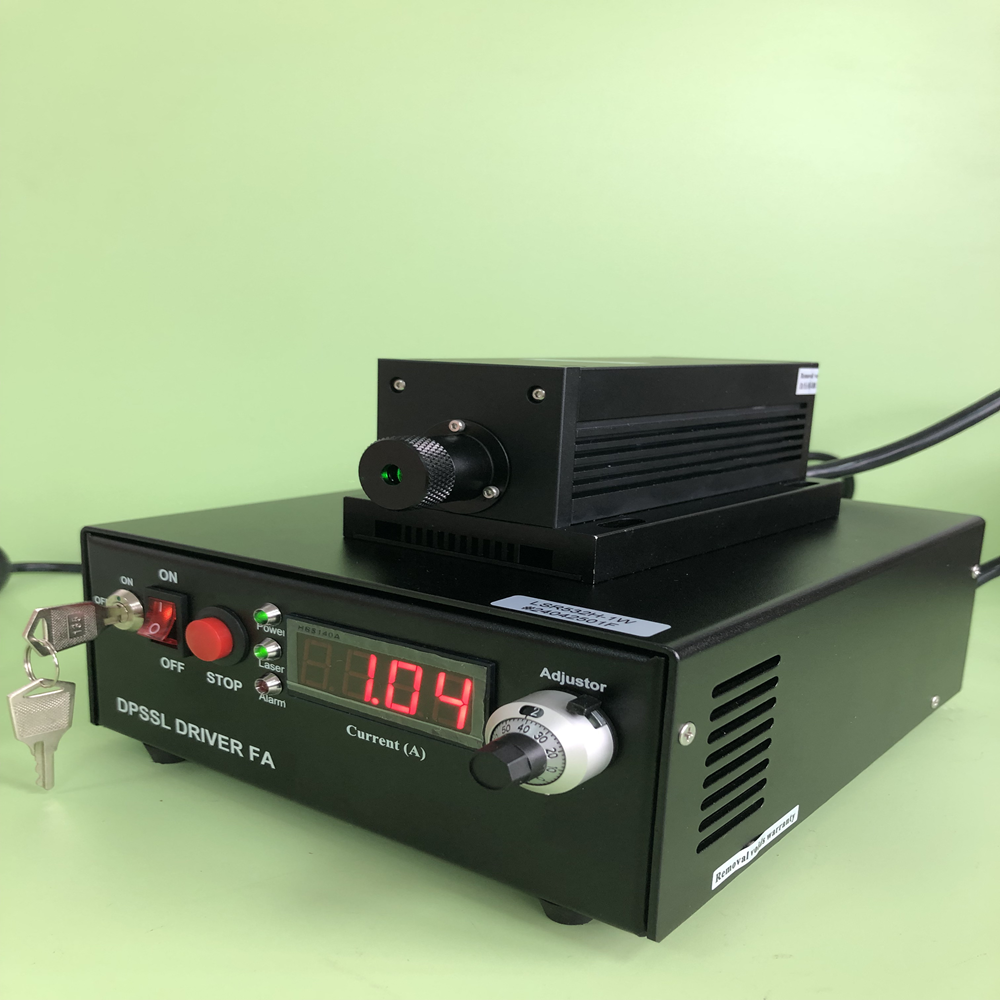

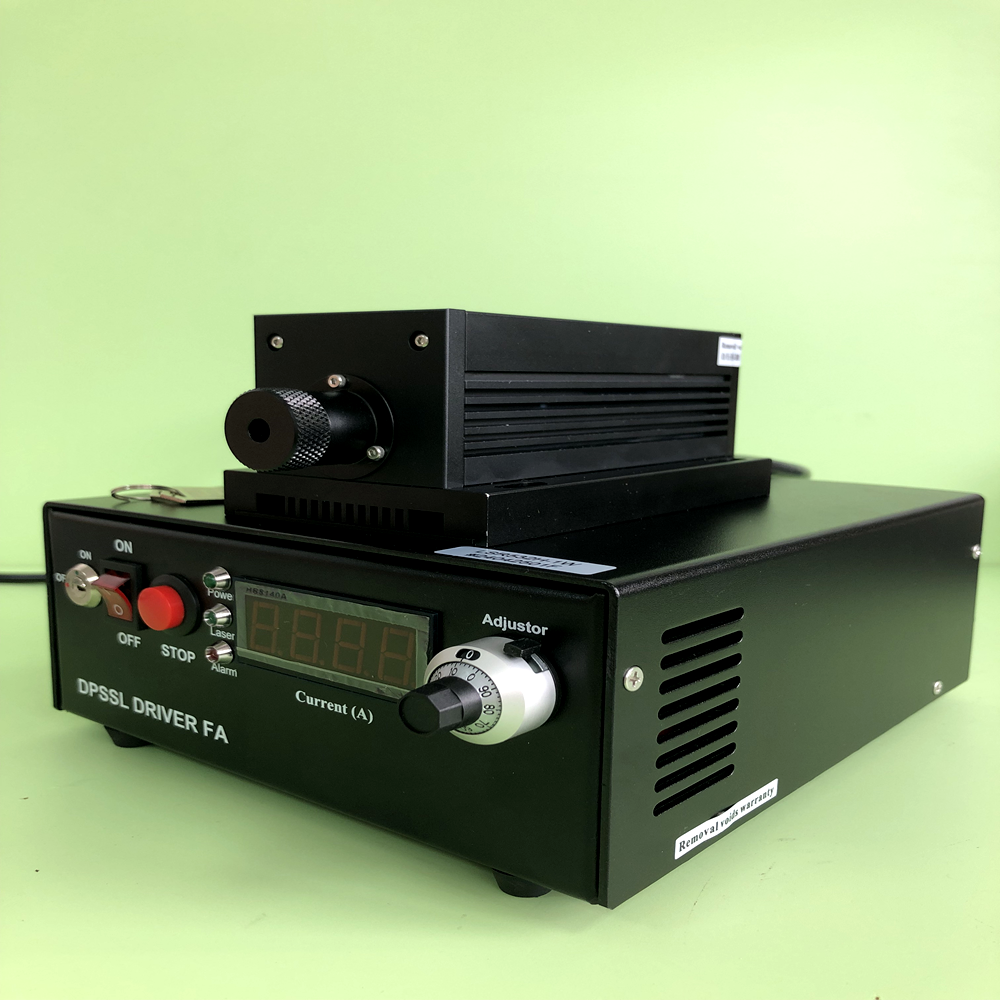

500.8nm Cyan Solid State Laser

$5,690.00
Add to Cart:

Wavelength (nm):500.81
Output power (mW):2mW
Transverse mode:Near TEM00
Operating mode: CW
Power stability (rms, over 4 hours): <10%
Warm-up time (minutes): <10
M2 factor: <1. 2
Beam divergence, full angle (mrad): <1. 5
Beam diameter at the aperture (mm): ~2. 0
Beam height from base plate (mm): 24. 8
Polarization ratio: >50:1
Pointing stability after warm-up (mrad): <0.05
Operating temperature (℃): 10~35
Power supply (90-264VAC or 5VDC): PSU-III-LED PSU-III-FDA PSU-III-OEM
Expected lifetime (hours): 10000
Warranty: 1 year
