405nm 200mW laser LD Sone SLD3237VFR
405nm 200mW laser LD Sone SLD3237VFR

Price:   Starting at: $39.00

Add to Cart:

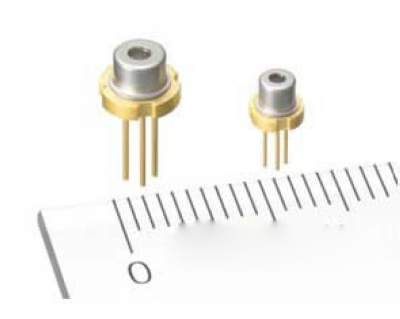

High quality 405nm laser diode, made in Japan. SLD3237VFR-51 is used for Blu-ray Disc, high power 405nm laser diode. SONE 200mW 405nm laser diode/ CW 335MW push/SLD3237VFR. SLD series of laser diodes are 405nm blue violet laser diodes,  made by Sone Company in Japan.

High power maximum pulse 335MW
Single Mode
OT 3.8mm, Maximum Ratings
Power Po: 200mW (CW) 335mW (Pulse)
Pulse width 25ns or less
Duty: 50%
Reverse voltage: VR  LD  2 V
Operating temperature: Topr 0 - +90℃
Storage temperature: Tstg -40 - +90℃


Blu-ray disc recorder


AIGainN quantum well structure laser diode

High brightness of LDs, SLDs work as a high-brightness light source Which compensates for the weakness of LDs such as coherent noise. SLDs are used for optical applied measurements and medical imaging.

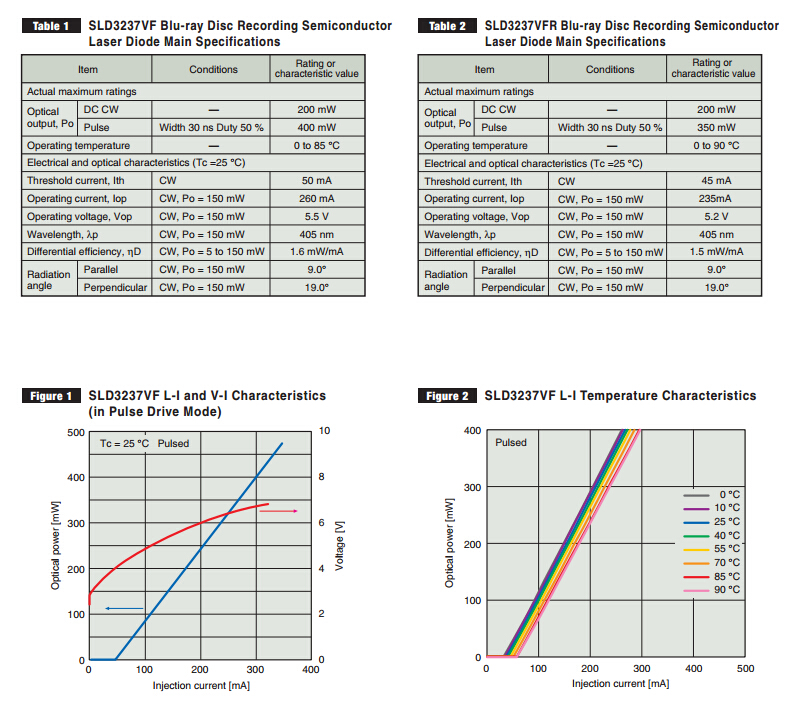

You can download the datasheet here:
