Solid state laser, 405nm-407nm blue violet single longitudinal mode laser is one type of single frequency laser. It only have single 405nm wavelength laser.
Mainframe Size: 69mm * 30mm * height 30mm width
Circuit Size: Length 71.5mm * wide 35.5mm * 16mm high
Output wavelength: 405-407nm
Output power: 150mW
Cooling method: aluminum heat
Modulation frequency: can be modulated
Operating Characteristics: continuous work
Finish: Blue
Shell material: Aluminum
Circuit control: constant current
Reverse polarity protection: with automatic identification of positive and negative
Working Voltage: DC = 12V
Working Current: I <180mA
Warm-up time: None
Working temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃

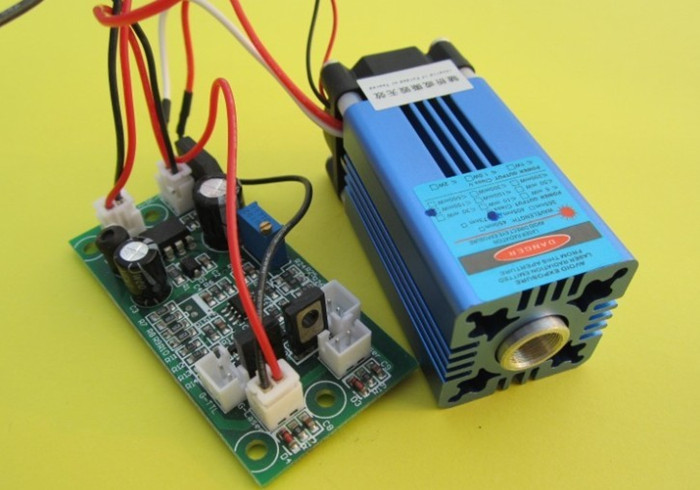

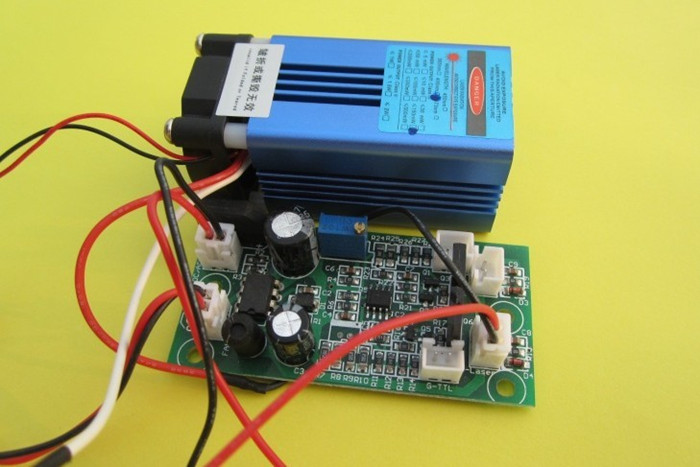

Structural features: laser tube + lens + cooling housing
Note: The power supply is external.
