High Power Diode 1064nm 2-pins Laser Modules are manufactured with new specialzed fiber-coupling techniques.
High efficiency, stability and superior beam quality. The 2-pins lasers are achieved by transforming the asymmetric radiation from the laser dioe chip into an output fiber with small core diameter by using special microptics. Inspecting and burn-in procedures in every aspect come to a resulto guarnteach product with reliablity, stabilty and long lifetme.
Features：
10W-20W output power
1064nm wavelngth
Standard fiber coupling for 40μm/0.2NA or 20μm/ 0.2NA
Customerize options：
Red or green aiming beam, there is another aiming laser pointer with the laser system for pointing.
Thermistor included.
Power PD
TEC coler
Fiber detcor
Aplications：
Dental
Dermatolgy
Therapeutic

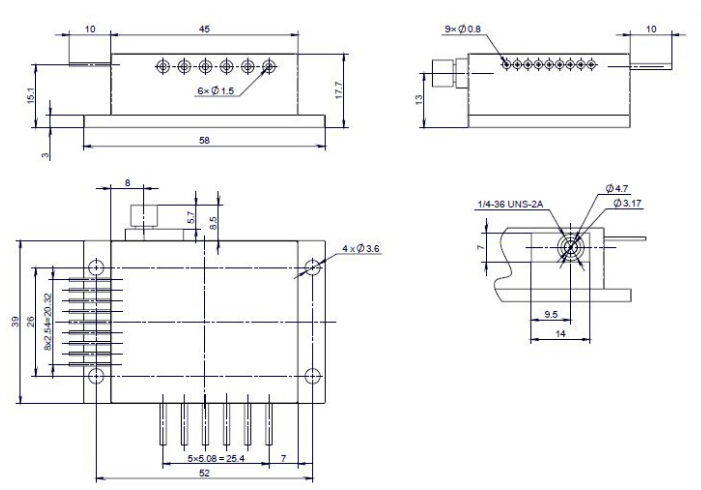

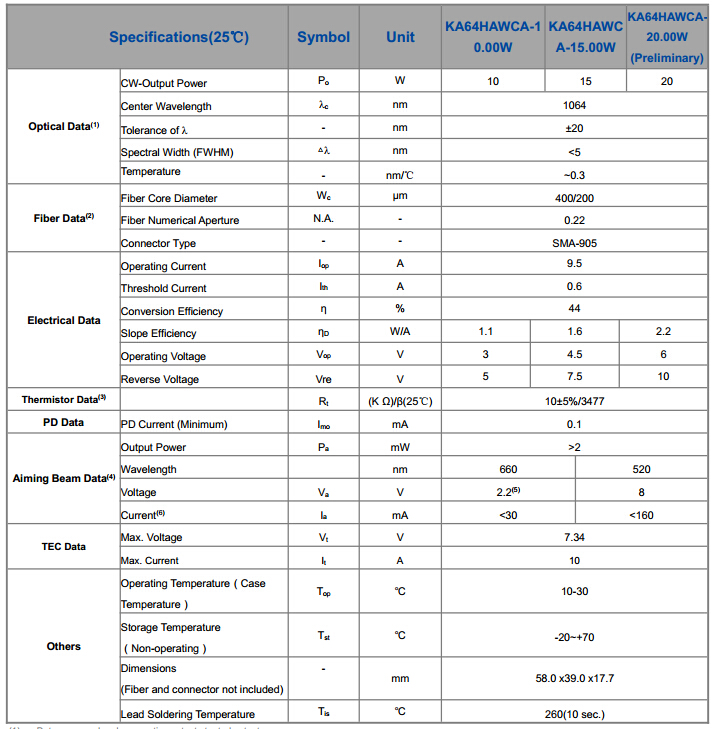

Check the datasheet as following:
