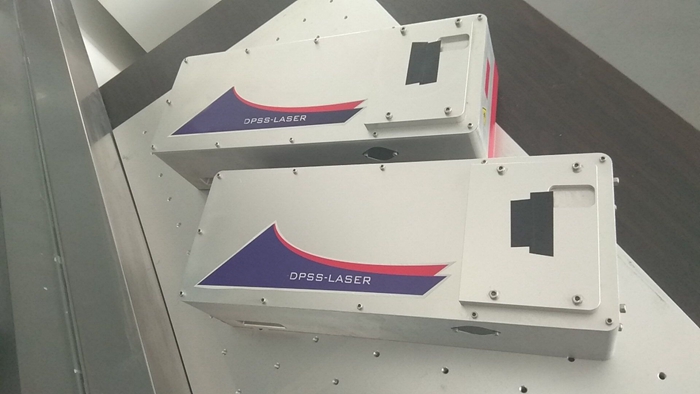

IR 1064nm Nanosecond Pulsed Laser Diode Laser System
Wavelength(nm) : 1064
power(mj) :150W @ CW >100W @ 10KHZ(>10mj)
Pulse width(ns) : 50-80
Frequency(KHz) : 4-20
Transverse mode : Multimode
Diameter(mm) : ~3mm
Divergence(mrad) (1/e2) : <3
Pointing stability (μrad) : < 50
Beam roundness: 90%
Polarization ratio : random
Cooling : water-cooling
Operation Temp(℃) :0-40
Warranty : one year
Size :
500150100(laser head )
488176400(power)
45052072(Water cooler)
Weight: 70KG
What is the difference between femtosecond and nanosecond laser?
In the femtosecond regime, the laser pulse terminates before any material escapes from the surface. The laser energy is deposited in the sample target without a laser-plasma interaction. For nanosecond laser ablation, plasma shielding results in a decrease in the laser energy reaching the surface.
