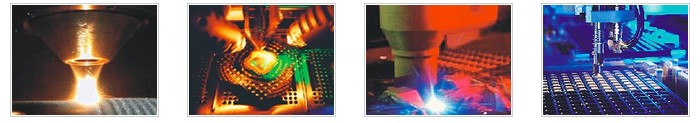

High efficiency CW fiber laser with great beam quality. The lasr is maintenance-free designed, and easy plug-in and play. It can be used in Cutting, Welding, Drilling, Forming, Surface treatment. Here are some pictures about the applications.

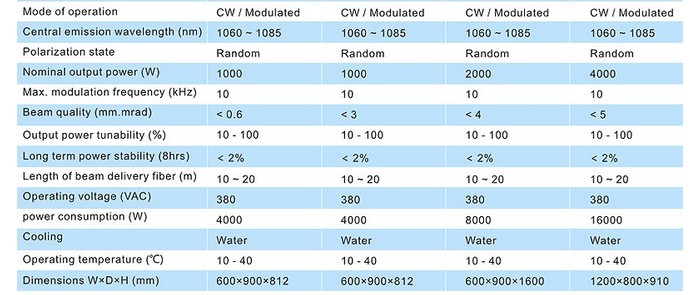

Operation Mode: CW/Modulated
Central Emission Wavelength: 1060nm ~ 1085nm
Polarization: Random
Average Output power:4000W (4KW)
Beam Quality(mrad) : <0.6
Output Power Tunability: 10-100%
Long term power stability(8hrs): < 2%
Length of beam delivery fiber: 10-20m
Operating Voltage:380VAC
Power Consumption: 16000W
Cooling: Water
Operating Temperature: 0-45℃
Dimension WxDxH: 1200mm x 800mm x 91mm
